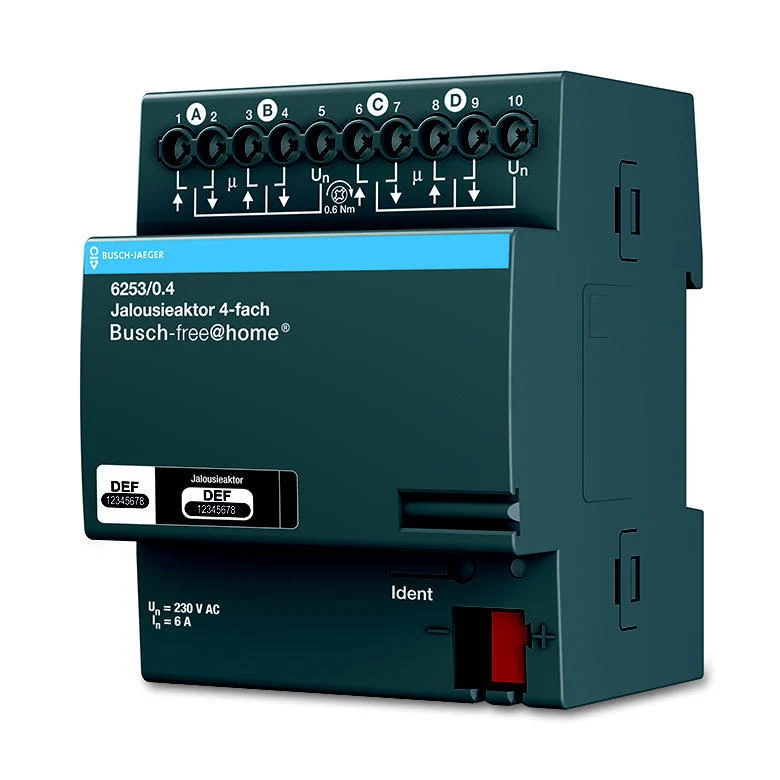

ABB Busch-Jaeger Busch-FreeAtHome Blinds Actuator Bus System – 2CKA006220A0029

For controlling 4 independent blind or roller shutter drives. The outputs are inversely blocked. The bus can be connected via enclosed terminal block.

Specifications

Bus system KNX : No
Bus system KNX radio : No
Bus system radio frequent : No
Bus system LON : No
Bus system Powernet : No
Other bus systems : free@home
Radio frequent bidirectional : No
Mounting method : DRA (DIN-rail adapter)
Width in number of modular spacings : 4
With bus connection : Yes
Bus module detachable : No
Local operation/hand operation : No
With LED indication : No
Number of inputs : 0
Switching current (resistive) (A) : 6
Max. switching power (W) : 1380
Max. number of venetian-blind outputs : 4
With switch function : Yes
Type of current : AC
Degree of protection (IP) : IP20
