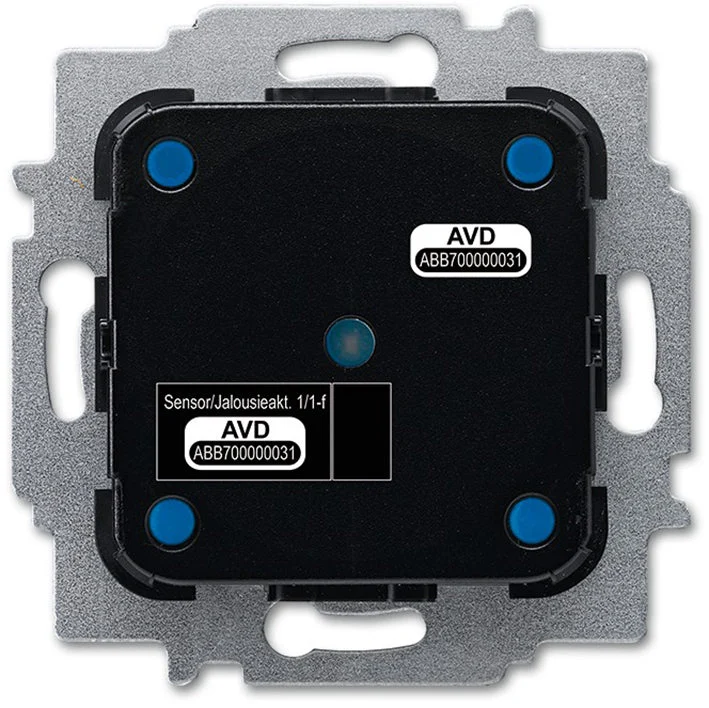

ABB Busch-Jaeger Busch-FreeAtHome Blinds Actuator Bus System – 2CKA006200A0049

For controlling blind or awning motors. Communication with the free@home system is carried out wireless. With integrated blind actuator. Blind function is available also without prior programming (pre-configured). Configuration can be changed later via the web interface (groups, scenes, etc.). For contacting 1gang rocker 6230-10-xxx, 6231-10-xxx, 6232-10-xxx, 6233-10-xxx und 6234-10-xxx. 3 wire connection (neutral conductor required). With two 230 V extension unit inputs (Up/Down). With fixing claws.

Specifications

Bus system KNX : No
Bus system KNX radio : No
Bus system radio frequent : No
Bus system LON : No
Bus system Powernet : No
Other bus systems : free@home
Radio frequent bidirectional : No
Mounting method : Flush mounted (plaster)
Width in number of modular spacings : 0
With bus connection : Yes
Bus module detachable : No
Local operation/hand operation : Yes
With LED indication : Yes
Number of inputs : 0
Switching current (resistive) (A) : 4
Max. switching power (W) : 920
Max. number of venetian-blind outputs : 1
With switch function : Yes
Type of current : AC
Degree of protection (IP) : IP20
Min. depth of built-in installation box (mm) : 32
