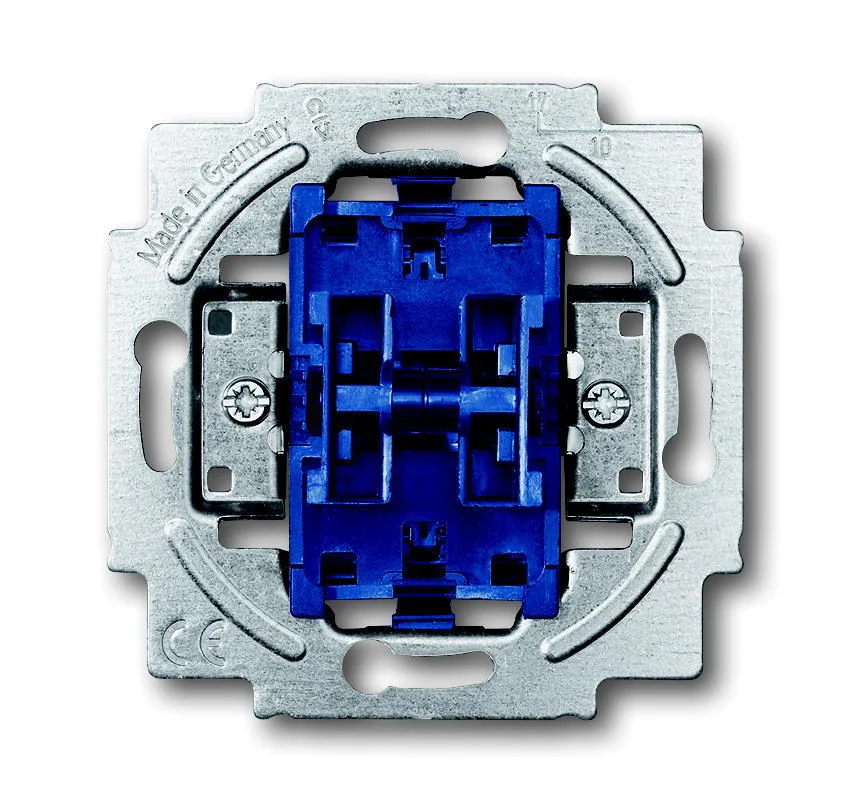

This changeover switch from Busch-Jaeger has two control buttons and is used to control two different changeover switches from one location. For example, you can place a changeover switch at the bottom of the stairs to control the light in the hallway with one rocker and the light upstairs. That light can be turned off again upstairs with a changeover switch.
Specifications
Wiring system : Alternating-/alternating switch
Method of operation : Rocker/button
Assembly arrangement : Basic element
Number of modules (module system) : 0
Push button switch : No
Number of rockers : 2
Mounting method : Flush mounted (plaster)
Type of fastening : Mounting with claw and screw
With mounting plate : No
Material : Plastic
Material quality : Thermoplastic
Halogen free : Yes
Anti-bacterial treatment : No
Surface protection : Untreated
Surface finishing : Matt
RAL-number (similar) : 5010
Label space/information surface : No
Illumination : No
Suitable for degree of protection (IP) : IP20
Nominal voltage (V) : 250
Rated current (A) : 10
Switching current for fluorescent lamps (AX) : 10
Feedback-signal contact : No
Connection type : Push-in clamp
Heating switch : No
Washing machine switch : No
Width of device (mm) : 71
Height of device (mm) : 71
Depth of device (mm) : 71
Built-in depth (mm) : 25
Compatible with Apple HomeKit : No
Compatible with Google Assistant : No
Min. depth of built-in installation box (mm) : 32
Compatible with Amazon Alexa : No
IFTTT support available : No
