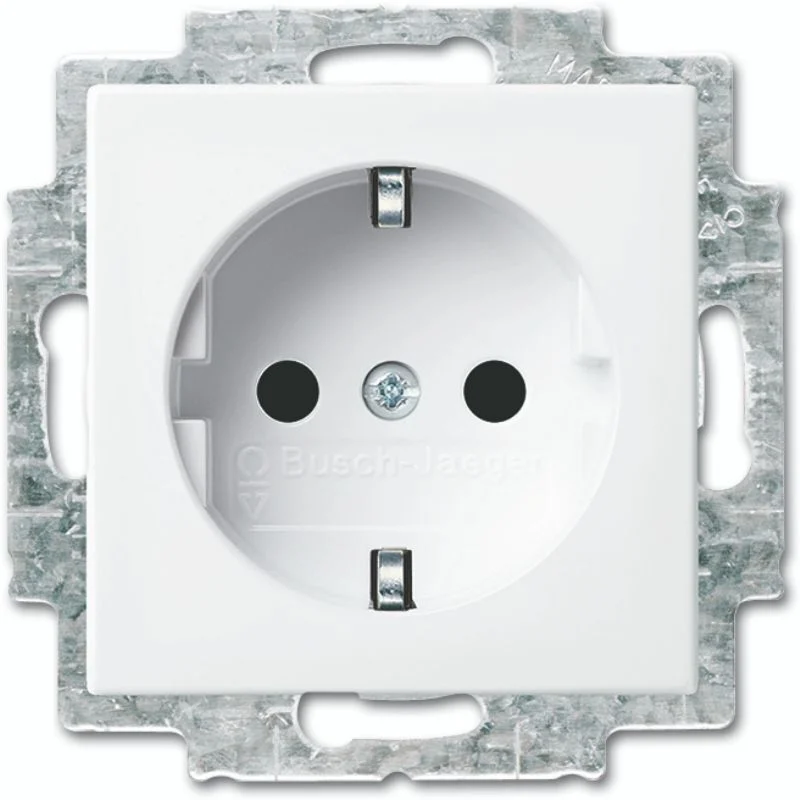

This socket outlet from the Balance SI series from Busch-Jaeger features grounding, increased touch protection (child protection) and LED steplight. This integrated orientation light provides good orientation in hallways, stairwells or rooms. In addition, this socket outlet with Busch steplight is also ideal for use in senior housing or as a night light in children’s rooms. The two LEDs create a cone of light that shines vertically downward from the socket.
Specifications
Model : Protective contact (SCHUKO)
Protective contact : Yes
Protective earth pin round : No
Number of active pins (round) : 2
Number of active pins (flat) : 0
With signal lamp : No
With built-in USB power supply : No
Number of units : 1
Number of modules (module system) : 1
Number of socket outlets switchable : 0
Number of phases : 1
Imprint/indication : None
Connection type : Push-in clamp
With hinged lid : No
With enhanced contact protection : Yes
Label space/information surface : No
Color : White
RAL-number (similar) : 9010
Metallic color : No
Transparent : No
Lockable : No
Eject-mechanism : No
Insulated mounting : Yes
With function lighting : No
With orientation lighting : Yes
Over voltage protection : No
Fault current protection : No
With miniature fuse : No
Special power supply : Supplementary safety power supply (orange)
Mounting method : Flush mounted (plaster)
Type of fastening : Mounting with claw and screw
Material : Plastic
Material quality : Thermoplastic
Halogen free : Yes
Surface protection : Untreated
Surface finishing : Glossy
Anti-bacterial treatment : No
With on/off switch : No
With loop through function : Yes
Rotated central insert : No
Nominal current (A) : 16
Nominal voltage (V) : 250
Frequency (Hz) : 50 Hz to 50 Hz
Rated fault current (mA) : 0
Suitable for degree of protection (IP) : IP20
Impact strength : IK03
Width of device (mm) : 71
Height of device (mm) : 71
Depth of device (mm) : 48
Compatible with Apple HomeKit : No
Compatible with Google Assistant : No
Min. depth of built-in installation box (mm) : 40
Compatible with Amazon Alexa : No
IFTTT support available : No
