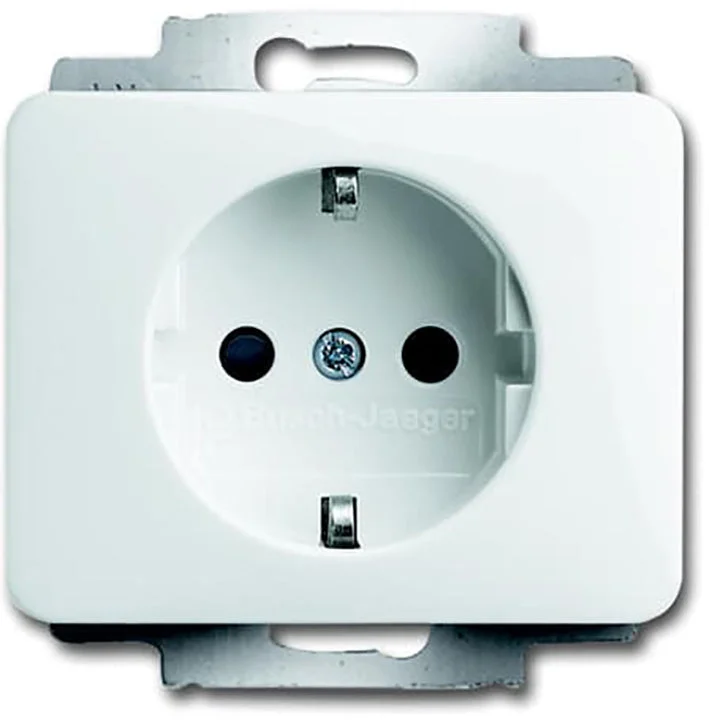

Abb Busch-Jaeger Alpha Nea socket outlet (wall socket switchmaterial), plastic, platinum, flush-mounted, design perimeter, degree of protection (IP) IP21, cover central plate, protection contact, surface matt finish, connection type plug-in terminal, 1 unit, impact resistant, with loop-through facility.
Specifications
Model : Protective contact (SCHUKO)
Protective contact : Yes
Number of active pins (round) : 2
Number of units : 1
Number of modules (module system) : 1
Number of phases : 1
Imprint/indication : None
Connection type : Push-in clamp
Color : Platinum
Insulated mounting : Yes
Special power supply : No special power supply
Mounting method : Flush mounted (plaster)
Type of fastening : Mounting with screw
Material : Plastic
Material quality : Aluminum
Halogen free : Yes
Surface protection : Anodised
Surface finishing : Matt
With loop through function : Yes
Nominal current (A) : 16
Nominal voltage (V) : 250
Frequency (Hz) : 50 Hz to 50 Hz
Suitable for degree of protection (IP) : IP20
Impact strength : IK03
Width of device (mm) : 71
Height of device (mm) : 71
Depth of device (mm) : 41
Min. depth of built-in installation box (mm) : 40
