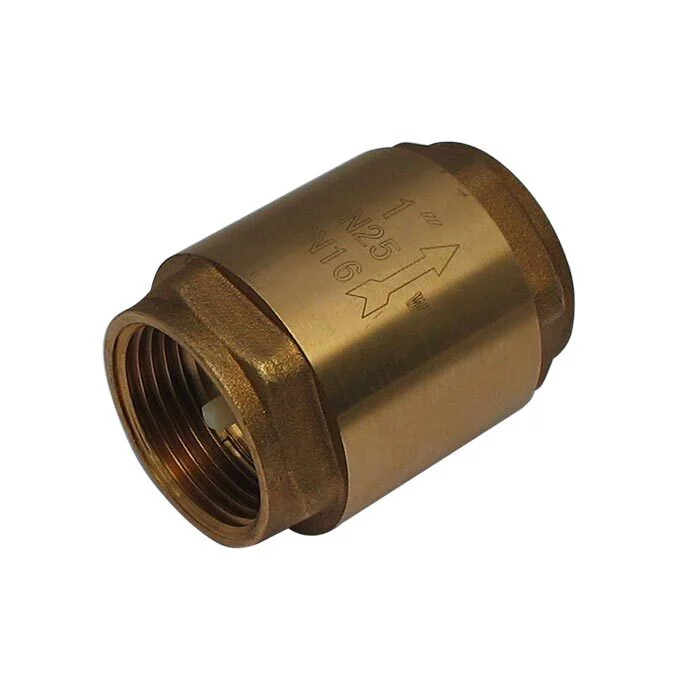

G1″ Brass check valve with parallel thread (BSPP) and NBR seal. The minimum differential pressure across the non-return valve must be higher than 0.1 bar. The valve has a light spring to close the valve. The maximum operating pressure is 16 bar and the valve is suitable for temperatures between 0 and 90°C.
Specifications
Connection size : 1 inch
Connection type : Inner thread cylindrical BSPP-G
Material : Brass
Seal material : NBR (nitrile rubber)
Recommended for : Water,Air,Oil,Alcohols,Lubricant
Max pressure at 20 °C (bar) : 16
Max temperature (°C) : 90
Min opening pressure (bar) : 0.1
Model : Straight
Surface protection : Untreated
Width (mm) : 48
Height (mm) : 75
Article compression class : PN 16
