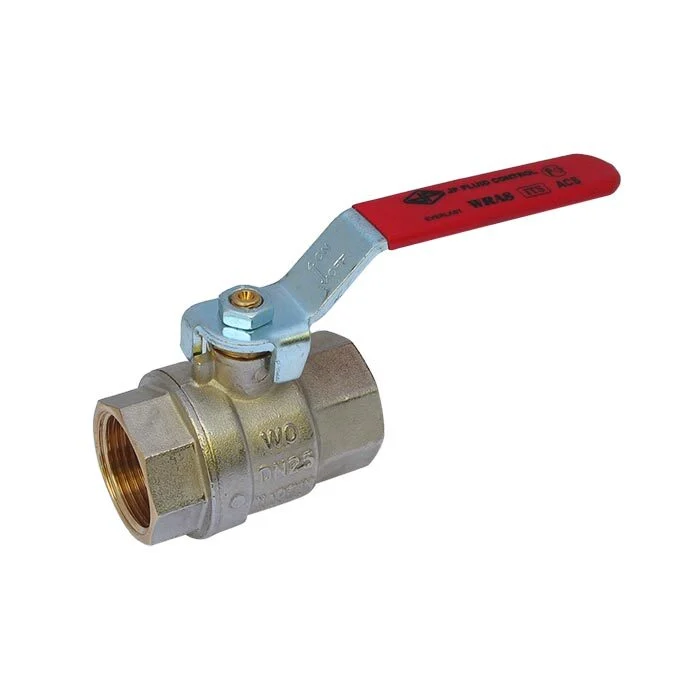

This 2-way ball valve from JP Fluid Control with a nominal diameter of 61 mm is designed for on/off flow control. The valve has G 2 1/2 inch female threaded ports. This is BSPP (British Standard Pipe Parallel. With our range of 2 1/2 inch fittings, the valve can be installed in any pipe.
The housing of the valve is made of nickel-plated brass, the ball is made of brass and the seals are made of PTFE/NBR. This valve is suitable for various media, such as water, oil or air. The valve can be used up to a max pressure of 16 bar (232 psi) and within a temperature range between -20 and 110 °C (-4 and 230 °F).
Use the handle to operate the valve. By rotating it 90 degrees, the valve will open or close. If the handle is perpendicular to the pipe, the valve is closed. This valve is not suitable for electrical or pneumatic control. For this purpose, valves with an ISO-Top flange (ISO 5211) are recommended.
Pros:
- No extra friction losses thanks to the full bore design
Cons:
- Not suitable for aggressive media
- Suitable only for manual actuation
954 series
Our 2-way brass ball valve selection ranges from G 1/4 inch to G 4 inch. The valves are made of nickel-plated brass, the ball is made of brass and the seals are made of PTFE/NBR. Their operating pressure is up to 16 bar (232 psi). These valves are suitable for various media, such as water, oil or air. The operating temperature range is from -20 to 110 °C (-4 to 230 °F). The valves are handle operated. The ball valves in the 954 series of JP Fluid Control are characterized by a long life.
Specifications
Connection size : 2 1/2 inch
Connection type : Inner thread cylindrical BSPP-G
Material : Brass
Seal material : Teflon (PTFE)
Max pressure difference at 20 °C (bar) : 16
Recommended for : Water,Air,Oil,Fuel,Solvents,Alcohols,Lubricant
Min temperature (°C) : -20
Max temperature (°C) : 110
Valve bore (mm) : 61
Kv value [m3/h] : 510
Housing construction : 2-part
Model : Straight
Article compression class : PN 16
Ball seal : Teflon (PTFE)
Full bore : Yes
Material ball : Brass
Spindle seal material : NBR (nitrile rubber)
