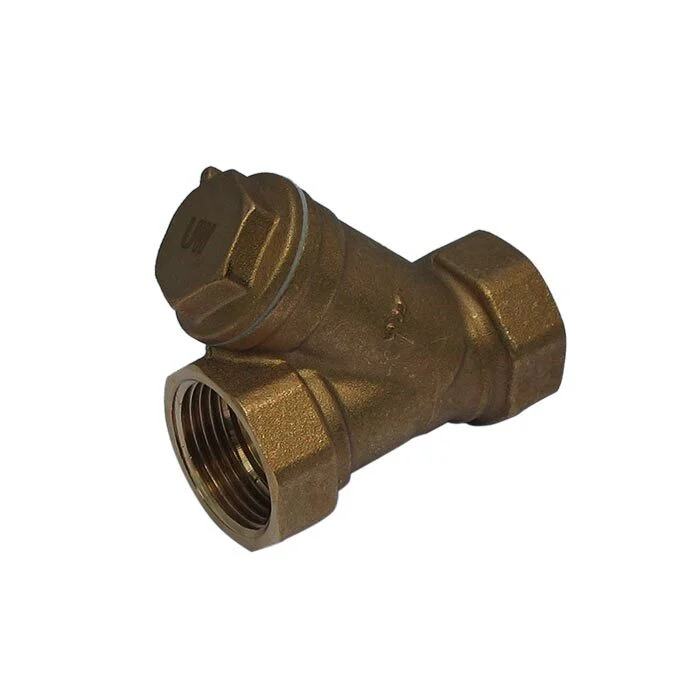

Brass particle filter (Y-filter) with 1″ pipe connection and stainless steel mesh. For media from 0°C up to 90°C. To be used in a single flow direction. The residue collects in the filter and can be cleaned by unscrewing the sealing cap.
| Feature | Value |
| Port threads | G1 inch |
| Filter housing | Brass |
| Filter material | Stainless steel (SS 304) |
| Medium temperature | 0..90°C |
| O-ring | PTFE (teflon) |
| Flow Direction | single (arrow) |
Applications
Solenoid valves only operate well in combination with clean liquids or gases. Therefore, it is recommended to install a filter before the solenoid valve. The filter can also be used for other applications.
Specifications
Connection size : 1 inch
Connection type : Inner thread cylindrical BSPP-G
Max pressure difference at 20 °C (bar) : 16
Seal material : Teflon (PTFE)
Filter element material : Stainless steel
With coupling : No
Max temperature (°C) : 90
Filter housing height (mm) : 50
With drain possibility (connection) : No
With permanent magnet : No
