About this item
- Stable, high temperature, low water pressure start.
- Brass material, small size, easy to install.Hall element is imported, water-proof design to prevent water ingress,The inside of the impeller is inlaid with a stainless steel shaft and is always wear-resistant.
- The water flow sensor is applied for water heater, and can be used as flow switch.
- All materials are in line with SGS testing standards.
- Flow Range: 1.2-12L/min; Maximum Water Pressure: 1.75 Mpa
Descriptions:
1.Suitable for 8mm inner diameter hose.
2.Water Flow Switch adopts a Magnetic Reed Switch and a movable magnet which is fixed inside the water pipe. When water flows in the pipe, the magnet will detect the water flow and make the reed switch close or open.
3.Mainly used for water heater, boiler, coffee machines, hot card machines, steam equipment, water system, selling self-help water systems, water treatment equipment, cooling systems, mechanical equipment, instrumentation.
Specifications:

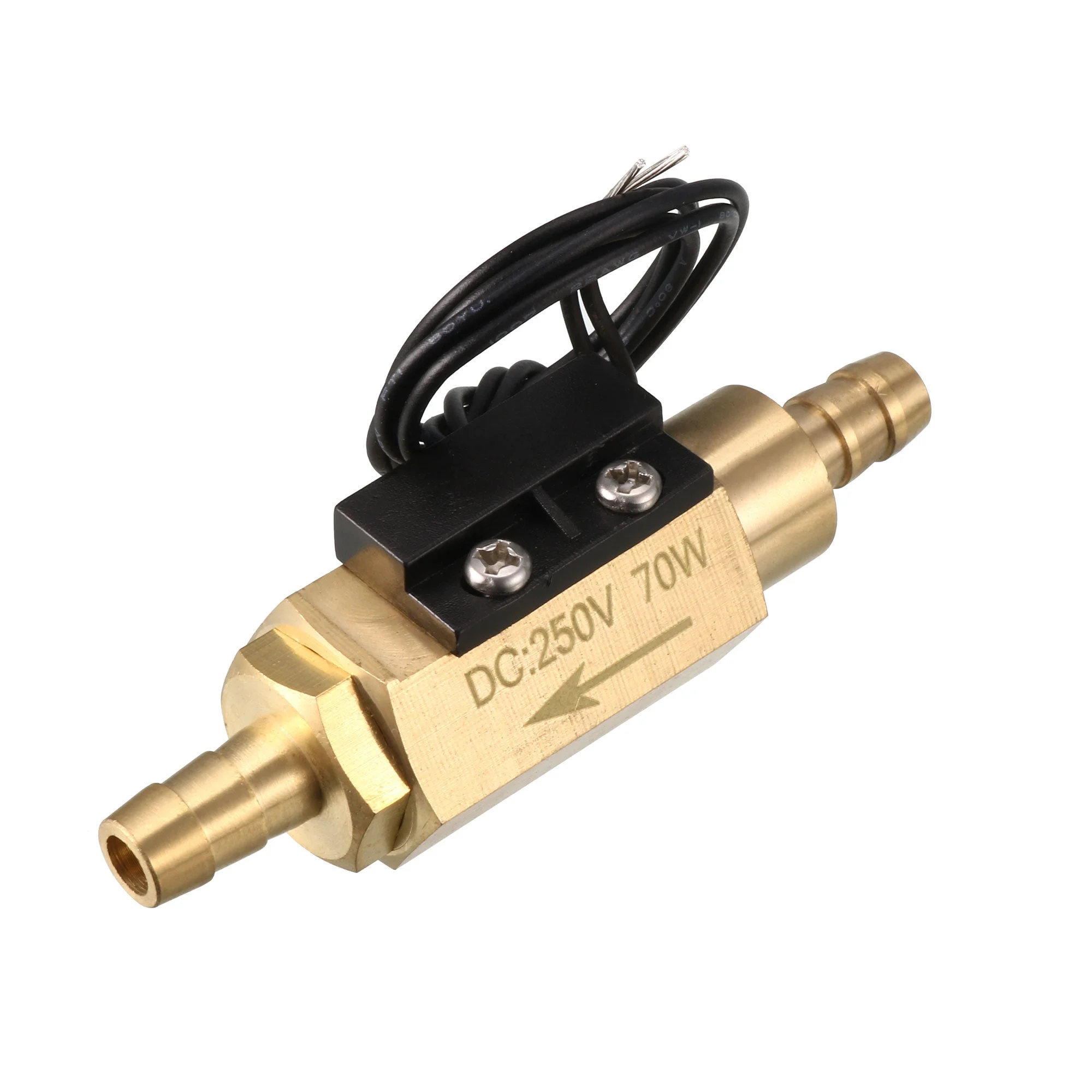

Product Name: Water Flow Sensor
Material: Brass(Shell)
Liquid Temperature: Not More Than 60C
Flow Range: 1.2-12L/min
Connector Size: 8mm
Max Switch Voltage: DC250V
Max Contact Rating: 70W
Max Current: 0.3A
Maximum Water Pressure: 1.75MPa
Cable Length: 33cm
Size: 81mm x 21mm x 26mm(L*W*H)
Ingress Protection Rating: IP65
Color: Brass Tone
Net Weight: 115g
Package Included:
1 x Water Flow Sensor
Note:
1. Installed in accordance with flow direction in the of product, otherwise there is no signal output.
