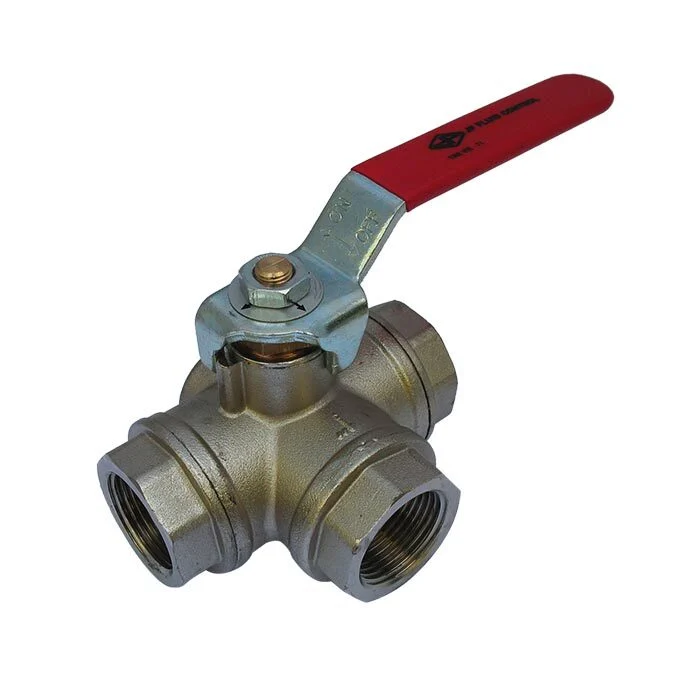

3-Way (L-bore) ball valve of nickel plated brass from JP Fluid Control with G3/8 inch pipe threads (BSPP) and a nominal diameter of 10mm. The valve has a pvc coated lever for manual control. The ball valves in the 70-series of JP Fluid Control are characterized by long life.
Technical Specifications
| Parameter | Value |
|---|---|
| Series | 70 |
| Function | 3-way (L-bore) |
| Diagram | The ports overlap during rotation. |
| Ports | G3/8 BSP (F/F/F) |
| Housing | Nickel plated brass (CW 617N) |
| Ball | Hard chrome plated brass |
| Seals | PTFE (teflon) |
| Nominal Diameter | 10 mm |
| Kv value | 3 m3/h |
| Operation | Lever (pvc coated) |
| Max pressure | 32 bar |
| Temperature | -20°C .. 150°C |
Installation
The valve has female thread on all three ports (3/8 inch). This is BSPP (British Standard Pipe Parallel). With our range of
Specifications
Connection size : 3/8 inch
Connection type : Inner thread cylindrical BSPP-G
Material : Brass
Seal material : Teflon (PTFE)
Ball bore : L-port
Kv value [m3/h] : 3
Max pressure difference at 20 °C (bar) : 32
Min temperature (°C) : -20
Max temperature (°C) : 150
Valve bore (mm) : 10
Article compression class : PN 32
Full bore : Yes
Material ball : Brass
Material ball seal : Teflon (PTFE)
Medically clean : No
