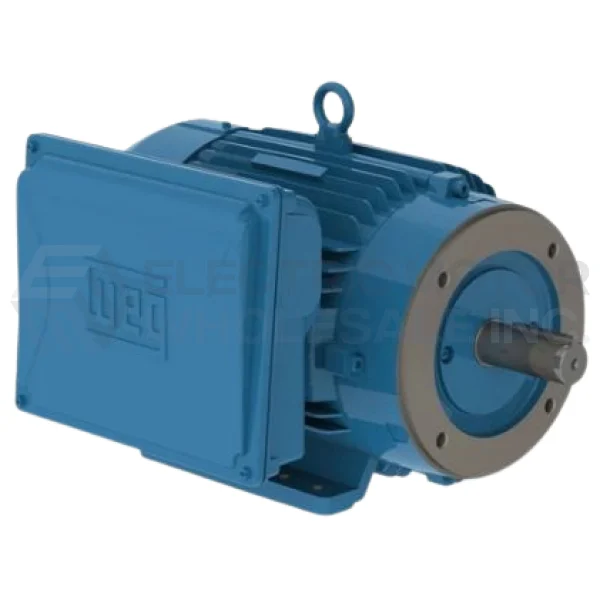

WEG Single Phase General Purpose Cast Iron Motor is the perfect option for applications that require robustness, low weight, and high performance in a single product. These rolled steel motors offer good thermal performance and easy installation and maintenance. Because of their high starting torque, they are particularly well suited for heavy starting loads.
Features:
- Ball bearings
- Class F insulation
- V-ring seals
Specifications
|
Application: |
General Purpose |
|
Output HP: |
7.5 |
|
Output KW: |
5.5 |
|
Output RPM: |
1750 |
|
Frame NEMA: |
213/5TC |
|
Mount NEMA: |
C-Face With Base |
|
Enclosure NEMA: |
IC411 – TEFC |
|
Enclosure IEC: |
IP55 |
|
Voltage: |
208-230/460 |
|
Frequency (Hz): |
60 |
