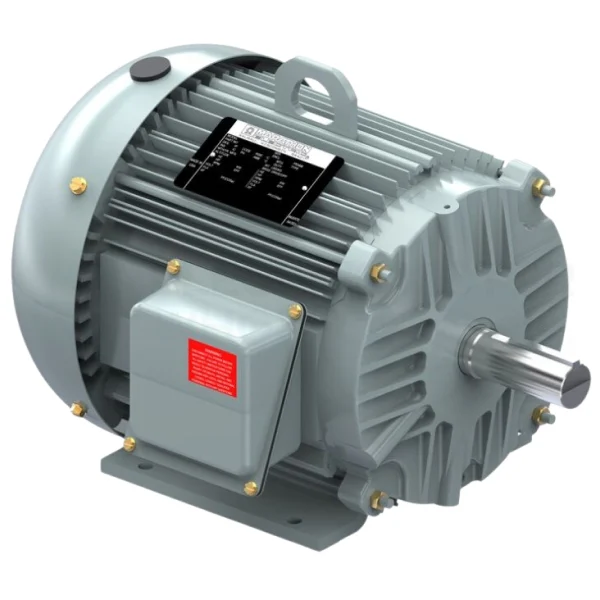

TEFC Models: For use where exposure to water, dust and corrosives exists. Ideally suited for use on pumps, compressors, fans, blowers, conveyors, machine tools and other industrial applications.
Features Include:
• IP43 Ingress Protection
• NEMA Premium models are in compliance with EISA 2007
• 182T to 286T frame
• Cast Aluminum Frame with cast iron end brackets
• Steel conduit box with steel fan guard
• Nameplated for 60 & 50HZ
• Inverter Rated – Any Inverter or VFD Brand
• Inverter duty 4:1 constant torque and 10:1 variable torque, 1.0 SF • MAX Guard® Class F Insulation
• 1.25 service factor (SF) on sinewave, 1.0 service factor on IGBT power
• Standard assembly F1, reversible to F2 assembly
• For C-Face, D-Flange, kits available, see accessory section
• UL®* Recognized, CSA®* certified, CE®* mark
• Three year warranty
Specifications
|
Brand: |
Marathon |
|
Application: |
General Purpose |
|
Output HP: |
7.5 |
|
Output KW: |
5.6 |
|
Output RPM: |
3540 |
|
Frame Size NEMA: |
213T |
|
Mount NEMA: |
With Base |
|
Enclosure NEMA: |
TEFC |
|
Enclosure IEC: |
IP43 |
|
Voltage: |
230/460, 230, 460 |
