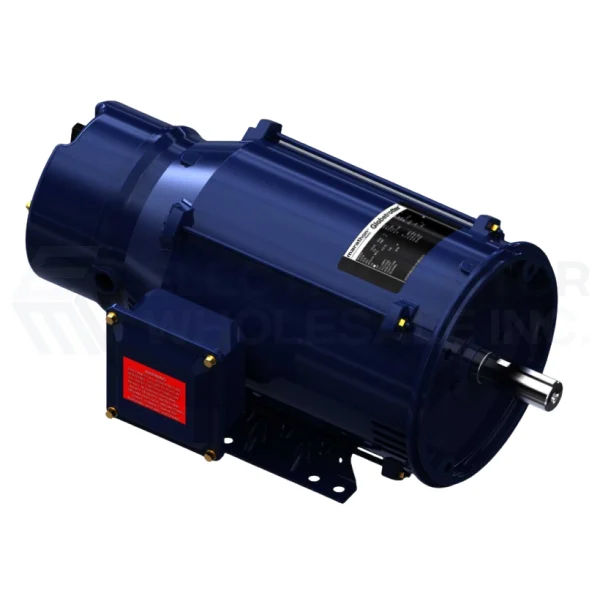

APPLICATIONS: Brake motor designed for use with conveyors, packaging equipment, machine tools, hoists, elevators and door operators.
FEATURES:
- Fail-safe, spring set Stearns 56,000 Series brake for holding or stopping
- Meets or exceeds NEMA Premium® efficiencies
- NEMA Premium models are in compliance with EISA2007
- Class F Insulation System
- Dynamically balanced rotors
- Steel conduit box
- Dual Frame Mounting
- Modifications and Kits are available
- 40°C Ambient 1.15SF Sine Wave Power and 1.0SF inverter power
- UL®* listed, UL certified for Canada and CE®* mark
This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays. Do not use this product in an explosion-proof application.
Specifications
|
Brand: |
Marathon |
|
Application: |
Brakemotor |
|
Output HP: |
7.5//5.0 |
|
Output KW: |
5.6//3.7 |
|
Output RPM: |
1766//1472 |
|
Frame Size NEMA: |
213TC |
|
Mount NEMA: |
C Face With Base |
|
Enclosure NEMA: |
DP |
|
Enclosure IEC: |
IP22 |
|
Voltage: |
208-230/460//190/380 |
