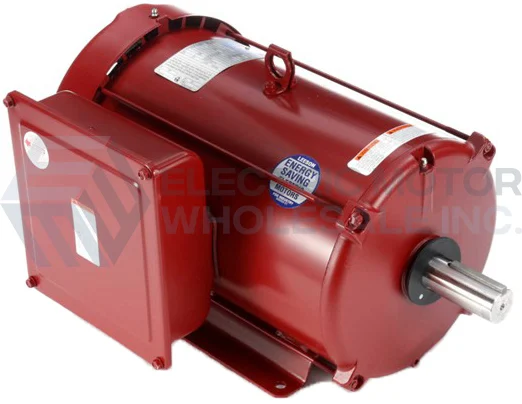

7.5HP LEESON 1750RPM 215TZ TEFC 1PH EX HI-TORQ MOTOR 141427.00

This Leeson Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

APPLICATIONS: Designed specifically for severe “farm duty” environments and applications, but work excellently in standard environments such as Air compressors, pumps and other single phase machinery.

Extra Hi-Torque rated 5, 7.5 and 10 HP Motors delivers starting torque as high as 300-400% of motor’s full load torque.

Mechanical Features:

• Steel frame
• 1 1/8″ shaft output diameter
• Gasketed capacitor housing and conduit boxes provide protection in all environments.
• Double sealed ball bearings pre-lubricated with Exxon POLYREX EM grease having operating temperature range of -20*F to +350*F and special formulation to provide extra bearing protection.
• Rubber boot over manual protector reset button provides weather protection.
• This motor has a NEMA 215T base mounting patttern and shaft height of 5.25″, with usable length of 3 3/8″ and diameter of 1 1/8″ with standard key
• Non USA Manufactured, MX

Electrical Features:

• Low temperature manual overload protector protects against extreme overload.
• Class “F” copper windings and varnish.
• Capacitor start/Capacitor run provides high starting torque with normal starting current.
