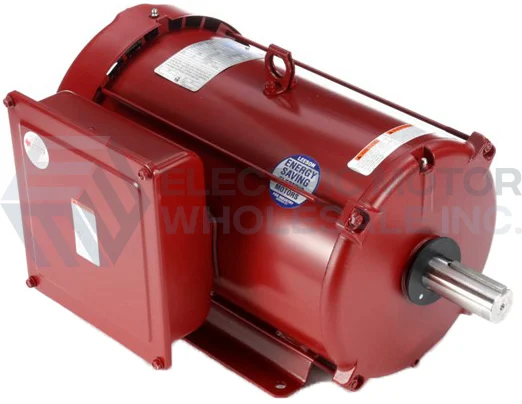

7.5HP LEESON 1740RPM 215T TEFC 1PH EX HI-TORQ MOTOR 141434.00

LEESON EXTRA HI-TORQUE Single Phase Motor designed specifically for severe “farm duty” environments and applications, but work excellent in standard environments such as Air compressors, pumps and other single phase machinery.

Extra Hi-Torque rated 5, 7.5 and 10 HP Motors delivers starting torque as high as 300-400% of motor’s full load torque.

Mechanical Features:

• 1 3/8″ Keyed output shaft
• Gasketed capacitor housing and conduit boxes provide protection in all environments.
• Double sealed ball bearings pre-lubricated with Exxon POLYREX EM grease having operating temperature range of -20*F to +350*F and special formulation to provide extra bearing protection.
• Rubber boot over manual protector reset button provides weather protection
• Non USA Manufactured, MX

Electrical Features:

• Low temperature manual overload protector protects against extreme overload.
• Class “F” copper windings and varnish.
• Capacitor start/Capacitor run provides high starting torque with normal starting current.

NOTE: At this time LEESON does not have a field serviceable C-face kit available for this motor

Specifications
