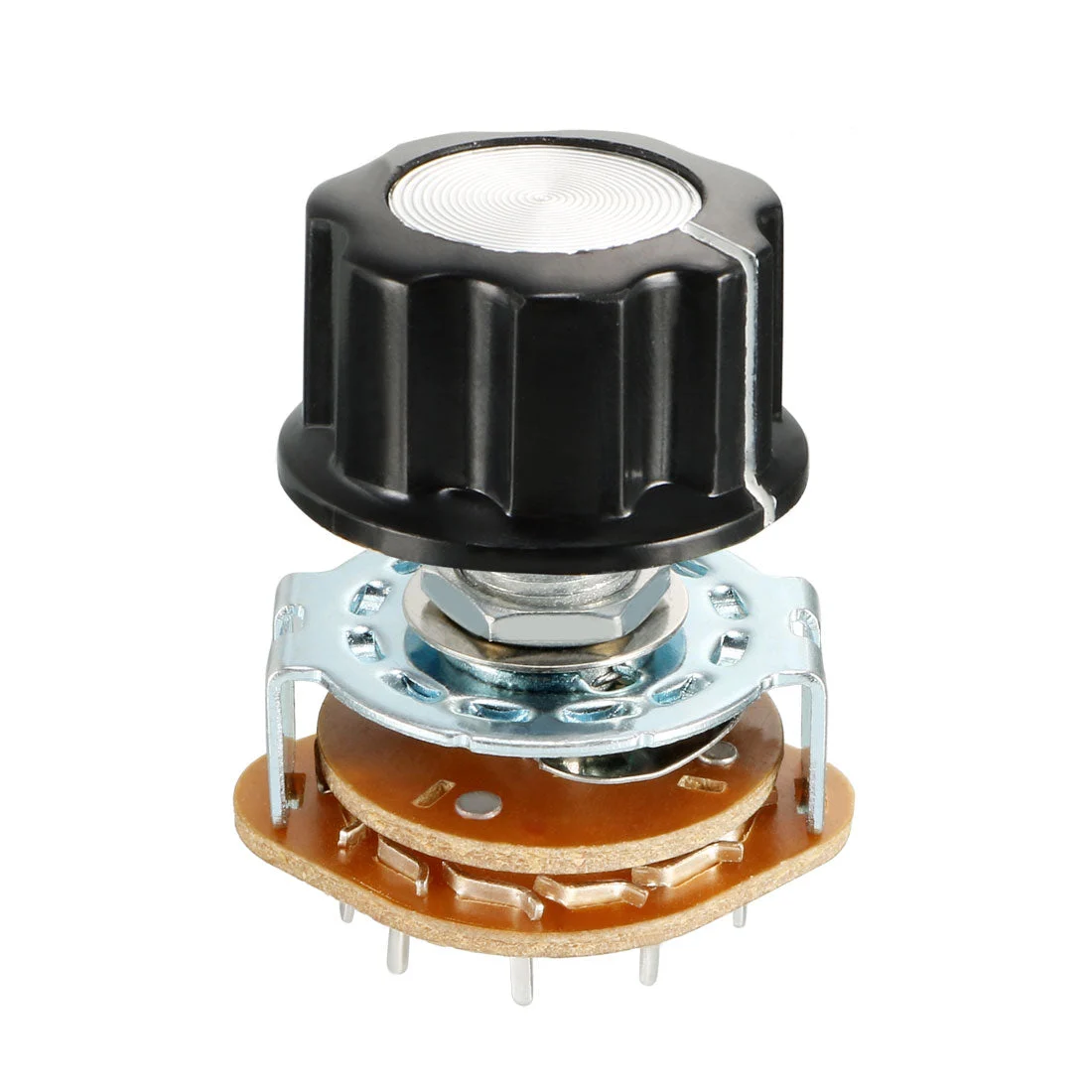

6mm 4P3T 4 Pole 3 Position Selectable Single Deck Band Channel Rotary Switch Selector with plastic knob

About this item

• Product Name : Band Selector Rotary Switch
• Contact Type : 4Pole 3Position,1Deck
• Fit Mounting Hole Diameter: 9mm / 0.35″ ; Pin Number : 16
• Rotating Shaft Dia : 6mm / 0.24″ ; Shaft Length : 14mm/ 0.55″
• Comes with mounting nut and black plastic knob, no worry about knob size mismatching

 Description:

• 4 Pole 3 Position design, plastic metal material, easily turned.
• Comes with mounting nut and black plastic knob, no worry about knob size mismatching
• Widely used on radio, TV, industrial machine control unit, or other electronic devices.

Specification:

• Product Name : Band Selector Rotary Switch
• Package Content : 1Pcs x Rotary Switch
• Model : S25 4*3+A03
• Material : Metal, Plastic
• Contact Type : 4Pole 3Position,1Deck
• Pin Number : 16
• Fit Mounting Hole Diameter: 9mm / 0.35″
• Rotating Shaft Dia : 6mm / 0.24″ ; Shaft Length : 14mm/ 0.55″
• Dimensions : 37.7 x 31mm / 1.48″ x 1.22″(Max.H*W)
