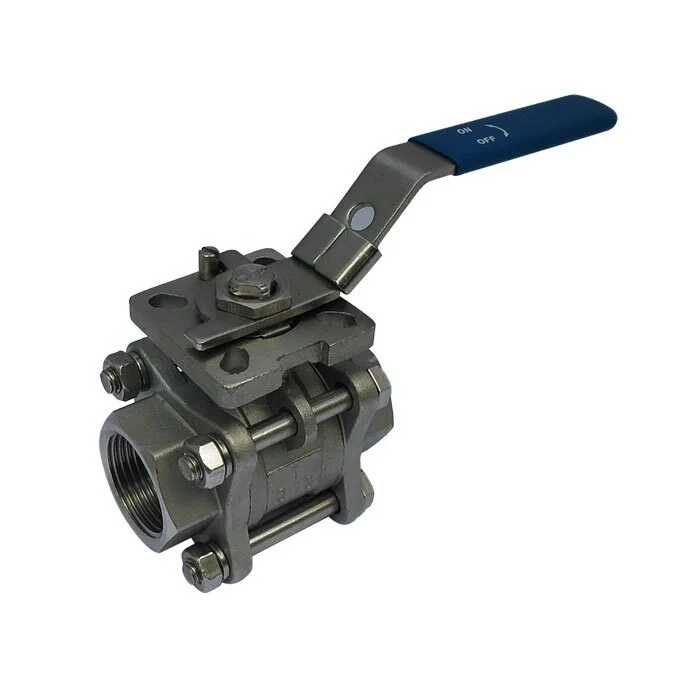

2-Way ball valve of stainless steel with 3-piece construction from JP Fluid Control with G4 inch pipe threads (BSPP) and a full bore (100 mm). The valve features an ISO-Top flange and has furthermore a coated lever for manual control. The ball valves in the 665-series of JP Fluid Control are characterized by long life.
Technical Specifications
| Parameter | Value |
|---|---|
| Series | 665 |
| Function | 2-way |
| Ports | G4 BSP (F/F) |
| Housing | Stainless steel (AISI 316) |
| Ball | RVS (AISI 316) |
| Seals | PTFE (teflon) |
| Nominal Diameter | 100 mm (full bore) |
| Kv value | 1230 m3/h |
| Operation | Lever + ISO 5211 flange (for actuator mounting) |
| ISO 5211 flange | F07 and F10 |
| Max pressure | 65 bar |
| Temperature | -40°C .. 220°C |
Installation
The valve has female thread on both sides (4 inch). This is BSPP (British Standard Pipe Parallel). With our range of
Maximum pressure versus temperature – 665-series.
Specifications
Connection size : 4 inch
Connection type : Inner thread cylindrical BSPP-G
Material : Stainless steel
Seal material : Teflon (PTFE)
Max pressure difference at 20 °C (bar) : 65
Min temperature (°C) : -40
Max temperature (°C) : 220
Valve bore (mm) : 100
Kv value [m3/h] : 1230
Material quality : Stainless steel 316 (1.4401)
Housing construction : 3-part
Model : Straight
Article compression class : PN 65
Ball seal : Teflon (PTFE)
Full bore : Yes
Material ball : Stainless steel
Medically clean : No
With drain : No
With drain possibility (connection) : No
