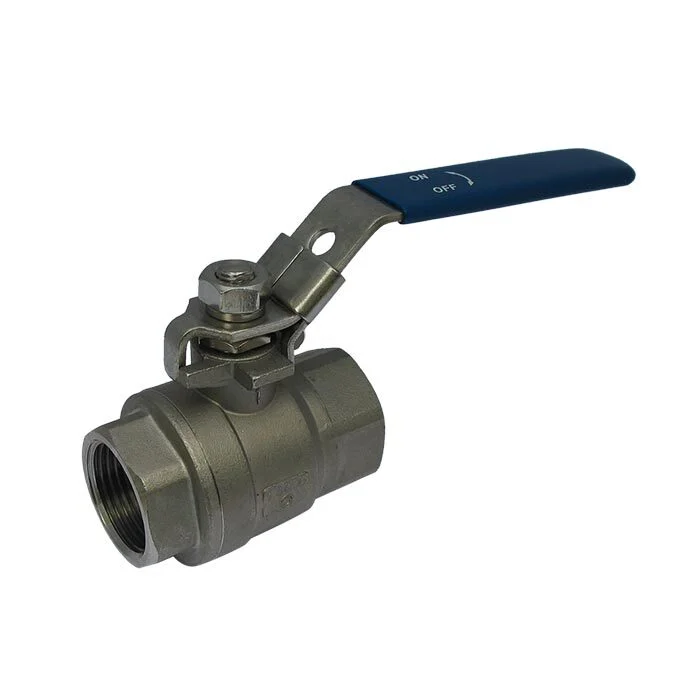

This 2-way ball valve from JP Fluid Control with a nominal diameter of 11.5 mm is designed for on/off flow control. The valve has G 1/4 inch female threaded ports. This is BSPP (British Standard Pipe Parallel. With our range of 1/4 inch fittings, the valve can be installed in any pipe (recommended pipe diameter ± 6 – 12 mm).
The housing of the valve is made of stainless steel, the ball is made of stainless steel and the seals are made of PTFE. Due to the stainless steel design the valves are suitable for various aggressive and corrosive media. The valve can be used up to a max pressure of 85 bar (1232.5 psi) and within a temperature range between -40 and 220 °C (-40 and 428 °F).
Use the handle to operate the valve. By rotating it 90 degrees, the valve will open or close. If the handle is perpendicular to the pipe, the valve is closed. This valve is not suitable for electrical or pneumatic control. For this purpose, valves with an ISO-Top flange (ISO 5211) are recommended.
Pros:
- No extra friction losses thanks to the full bore design
- Suitable for aggressive media thanks to the high quality materials
- Wide operating temperature range from -40 to 220 °C
Cons:
- Suitable only for manual actuation
660 series
Our 2-way stainless steel ball valve selection ranges from G 1/4 inch to G 4 inch. The valves are made of stainless steel, the ball is made of stainless steel and the seals are made of PTFE. Their operating pressure is up to 85 bar (1232.5 psi). Due to the stainless steel design the valves are suitable for various aggressive and corrosive media. The operating temperature range is from -40 to 220 °C (-40 to 428 °F). The valves are handle operated. The ball valves in the 660 series of JP Fluid Control are characterized by a long life.
Specifications
Connection size : 1/4 inch
Connection type : Inner thread cylindrical BSPP-G
Material : Stainless steel
Seal material : Teflon (PTFE)
Max pressure difference at 20 °C (bar) : 85
Min temperature (°C) : -40
Max temperature (°C) : 220
Valve bore (mm) : 11.5
Kv value [m3/h] : 16
Material quality : Stainless steel 316 (1.4401)
Housing construction : 2-part
Model : Straight
Article compression class : PN 85
Ball seal : Teflon (PTFE)
Full bore : Yes
Material ball : Stainless steel
Medically clean : No
With drain : No
With drain possibility (connection) : No
