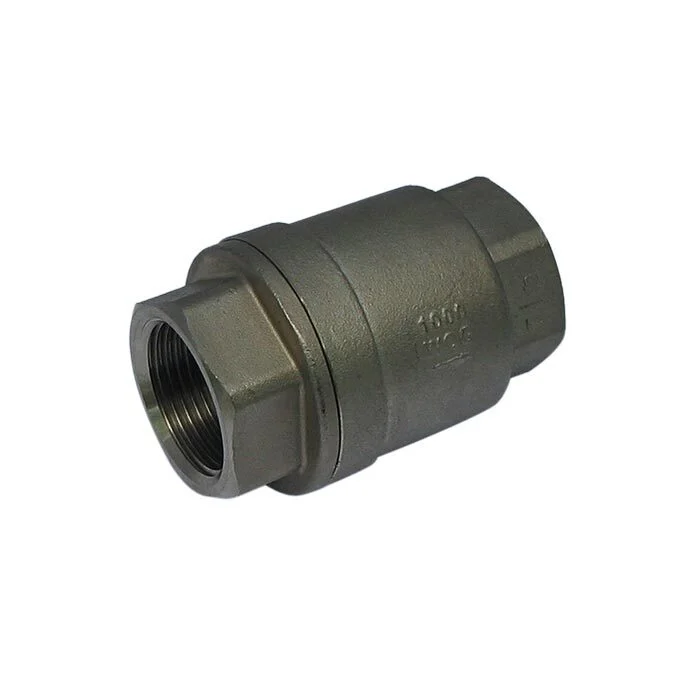

G1-1/4″ Stainless steel check valve with parallel thread (BSPP) and PTFE seal. The minimum differential pressure across the non-return valve must be higher than 0.1 bar. The valve has a light spring to close the valve. The maximum operating pressure is 64 bar and the valve is suitable for temperatures between -25 and 180°C.
Specifications
Connection size : 1 1/4 inch
Connection type : Inner thread cylindrical BSPP-G
Material : Stainless steel
Seal material : Teflon (PTFE)
Recommended for : Steam,Water,Air,Carbon dioxide,Dilute acids and bases,Strong acids and bases,Oil,Fuel,Solvents,Alcohols,Lubricant,Combustible gases,Sea water,Demineralized water
Max pressure at 20 °C (bar) : 64
Min temperature (°C) : -25
Max temperature (°C) : 180
Min opening pressure (bar) : 0.1
Material quality : Stainless steel 316 (1.4401)
Valve bore (mm) : 30
Model : Straight
Surface protection : Untreated
Width (mm) : 58
Height (mm) : 81
