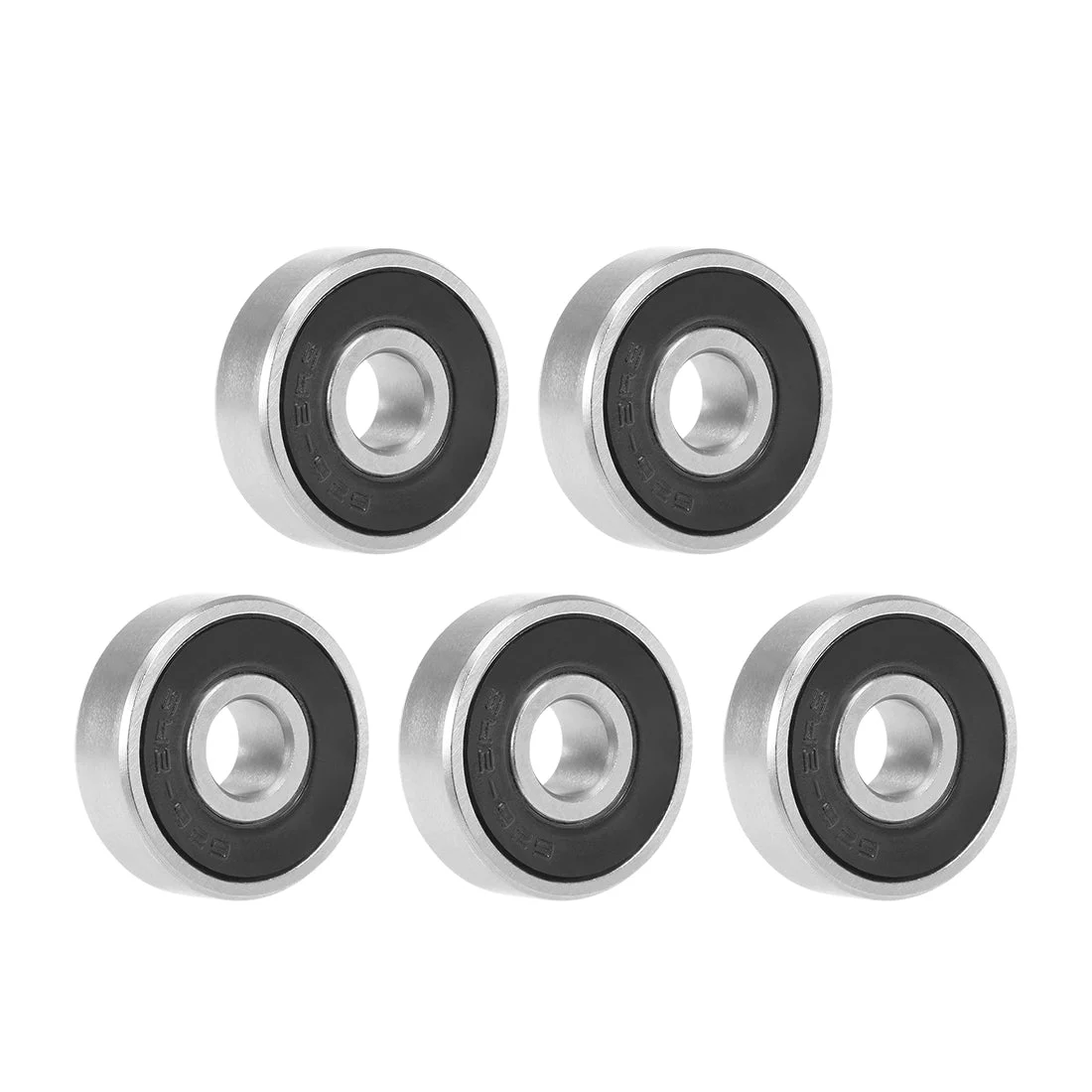

626-2RS Deep Groove Ball Bearing 6x19x6mm Double Sealed Carbon Steel Bearings 5Pcs

About this item

• 626-2RS (I.D.: 6mm, O.D.: 19mm, Thickness: 6mm)
• 626-2rs bearings are sealed on BOTH SIDES to keep lubricant in
• Made from Carbon Steel, features with good anti-rust and corrosion resistance
• ABEC Tolerance 1 (P0), Z1 Noise Level for most general use
• Static load rating of 1050 newtons and dynamic load rating of 2800 newtons

NOTE:

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.

Description:

• Single-row, pre-lubricated, normal accuracy.
• Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
• With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
• Carbon Steel bearings are better in toughness than chrome steel bearings after quenching. These cost-effective bearings are widely used in areas with low requirements for Mohs hardness.
• Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.

Selection Guide:

Shields (Designation Suffix Z/ZZ) – High speed. Protect from dirt and debris.

Sealed (Designation SuffixRS/2RS) – Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.

Specification:

Model: 626-2RS

Sealed Type: Double Sealed

Inner Race/Outer Race Meterial: Carbon Steel

Cage Material: Stamping Steel

Inner Diameter (d): 6mm

Outer Diameter (D): 19mm

Thickness (B): 6mm

Dynamic Load Rating (Cr): 2.80kN

Static Load Rating (Cor): 1.05kN

Accuracy Class: P0 (ABEC-1)

Noise Level: Z1

Number of Pack: 5Pcs
