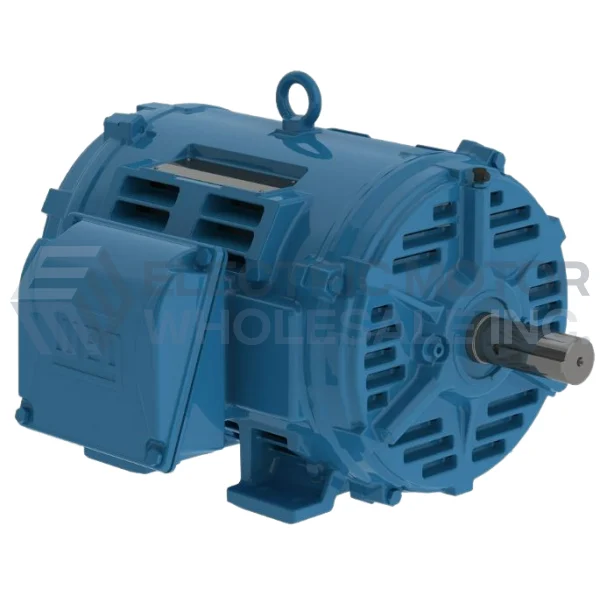

WEG Three Phase General Purpose AEGIS Shaft Grounded Rotor Motor are designed for environments where dirt and moisture are minimal. Widely used in applications such as HVAC, compressors, pumps and chillers, the ODP motor line meets or exceeds the efficiency levels determined by International Standards and the minimum efficiency level programs in force worldwide.
Features:
- 1-7/8″ Keyed output shaft
- Internal AEGIS Shaft grounding ring
- Dual rated 60/50Hz (190-220/380-415V @ 50Hz)
- Class F inverter rated insulation system
- New ventilation system for improved thermal performance
- Color coded leads as standard for easy wiring
- Double shielded ball bearings
Specifications
|
Brand: |
WEG |
|
Application: |
AEGIS SGR |
|
Output HP: |
60//50 |
|
Output KW: |
45//37 |
|
Output RPM: |
3555//2955 |
|
Frame Size NEMA: |
324/6TS |
|
Mount NEMA: |
With Base |
|
Enclosure NEMA: |
IC01 – ODP |
|
Enclosure IEC: |
IP23 |
|
Voltage: |
230/460//380 |
