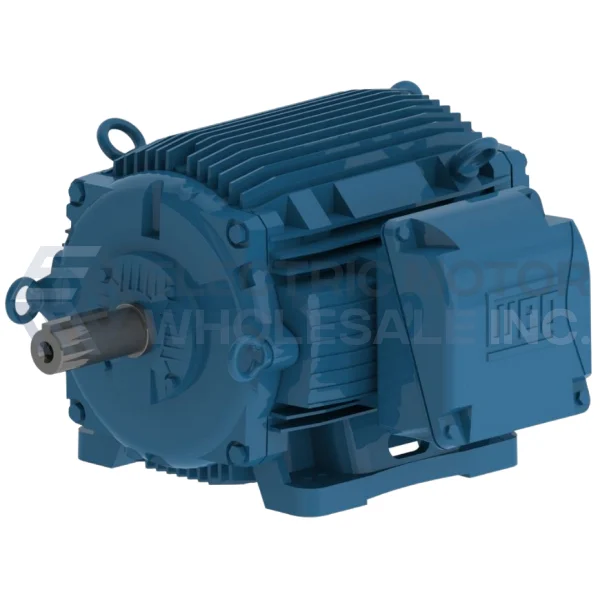

WEG’s TEAO Cooling Tower Motors are designed for operation in 100% humidity and the most corrosive environments. They are designed to operate in either horizontal or vertical mounting. WEG’s W22 cast iron platform has a superior cooling system and solid feet for cool operation and low vibration and noise extending the life of the motor.
Features:
- 1.25 Service Factor
- Stainless Steel Nameplate – Laser etched with high contrast background
- Double Sealed bearings
- Multiple end-bell drain plugs for shaft up, down or horizontal mounting
- Space Heaters
- Drain plugs in terminal box
- Rubber lead separator between terminal box and frame
- Internally and externally epoxy painted
- Double sealed bearings
- Double impregnation and bake
Specifications
|
Brand: |
WEG |
|
Application: |
Cooling Tower |
|
Output HP: |
60//50 |
|
Output KW: |
45//37.3 |
|
Output RPM: |
1780//1470 |
|
Frame Size NEMA: |
364/5T |
|
Mount NEMA: |
With Base |
|
Enclosure NEMA: |
IC418 – TEAO |
|
Enclosure IEC: |
IP55 |
|
Voltage: |
208-230/460//380 |
