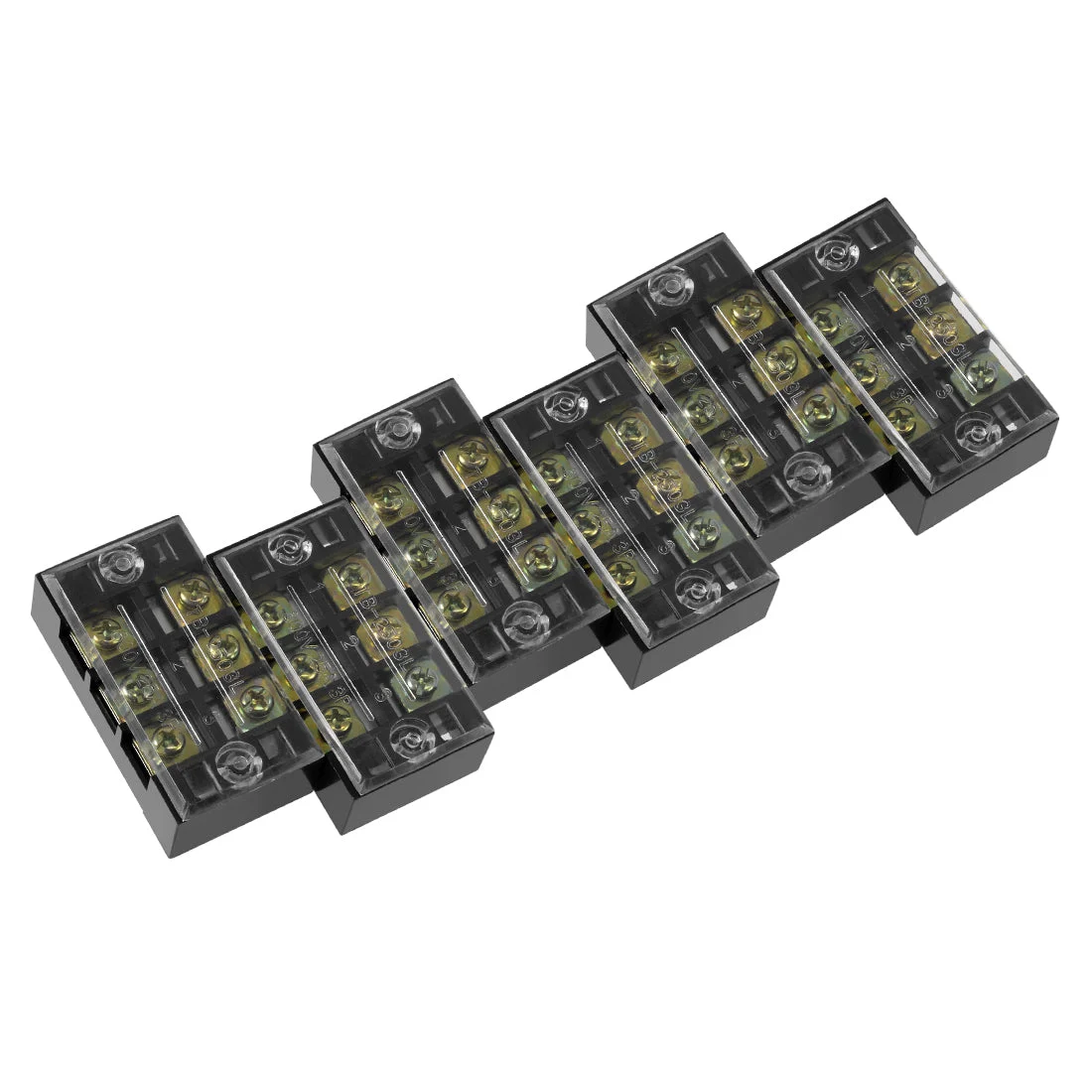

6 Pcs 3 Positions Dual Rows 600V 25A Wire Barrier Block Terminal Strip TB-2503L

About this item

• Product Name : Barrier Terminal Strip;Rating : 600V 25A;Poles : 3 Position, Dual Row
• Material : Iron, PVC;Color : Black, Brass Tone
• Volume -small, good electrical conductivity, the shape of the screw hole closed guide, not only can conveniently operate but also prevents the screw from falling out.
• Model : TB-2503L;Each Screw Terminal Width : 10.1mm/0.39″
• Package Content : 6 x Barrier Terminal Strip;Net Weight :158g

Description:
1. Double rows and with removable clear plastic insulating cover.
2. Each pair of terminals is insulated from the next, prevent circuit in trouble.
3. The set screws secure wires reliable contact and help prevent accidental contact with the terminals.
4. Used for wires connecting of home appliances, electronic circuits, machines, etc.
5. One mounting hole each end for fixed mounting, easy to install.
Features:
Volume -small, good electrical conductivity, the shape of the screw hole closed guide, not only can conveniently operate but also prevents the screw from falling out.
The potential distribution can be accomplished through access to the central terminal fittings or insert plug body side connector terminals; The piece is connected with a complete excellent electrical conductivity metal contact and the contact piece.
Specifications:
Product Name: 3 Positions Barrier Terminal Block
Maximum Rated Voltage: 600V
Maximum Rated Current: 25A
Poles: 3 Positions (Dual Row)
Size: About: 54.8 x29.6 x 20mm / 2.17inch x 1.16inch x 0.8inch(L*W*H)
Model: TB-2503L
Colour: Black
Material:Iron
Weight: 158g
Package Include:
4 Pcs x Barrier Terminal Block
