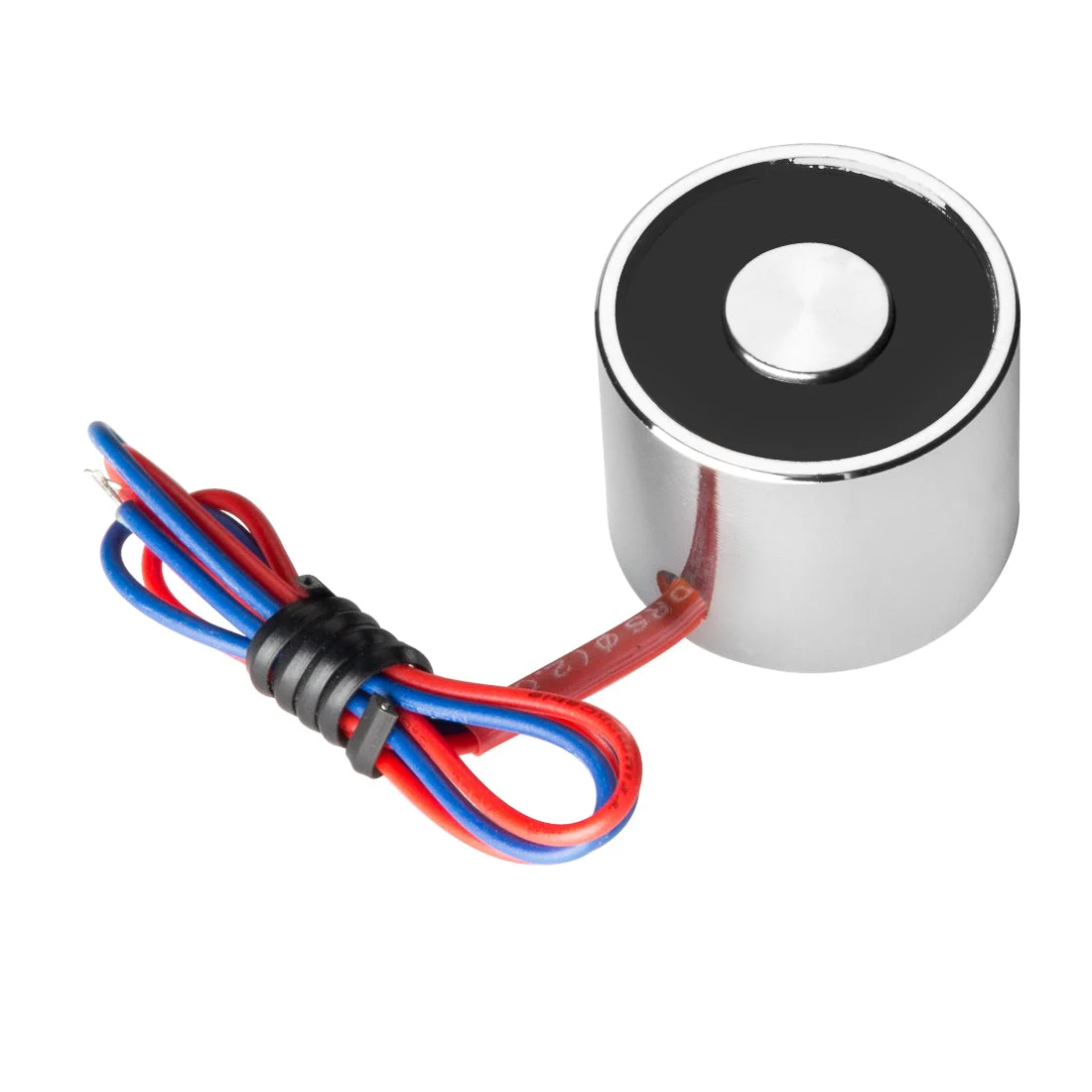

5V 50N Electric Lifting Magnet Electromagnet Solenoid Lift Holding

About this item

• Input Voltage: 5V DC; Peak Force: 50N; Holding Force:37N; Duty-cycle: 50%; Power-on time: Less than 7 minutes; Thread size: M4*6; Material: Pure Iron
• Overall Size : 25 x 20 mm / 1 x 0.8 inch(Dia. *T); Wire Length : 24cm/9. 5 inch
• Powerful and compact
• Note: The Force will be decreased due to long-term use, lower voltage, and improper suction object, among other factors. It is recommended that the actual force is less than 80% of the sucked force on the name plate. Electromagnetic conversion will generate a certain amount of heat when the electromagnet is working. The more frequently the power is turned on, the higher the temperature rise will be. This is a normal phenomenon. It is recommended to use the ambient temperature within 130 degrees
• Applications: assembly line, sorting machine, mechanical arm, experimental facility, etc

Feature:

Electric lifting magnet

Powerful and compact

Smooth and flat surface

Low consumption and reliable

Applications: assembly line, sorting machine, mechanical arm, experimental facility, etc

Note: The Force will be decreased due to long-term use, lower voltage, and improper suction object, among other factors. It is recommended that the actual force is less than 80% of the sucked force on the name plate.  Electromagnetic conversion will generate a certain amount of heat when the electromagnet is working. The more frequently the power is turned on, the higher the temperature rise will be. This is a normal phenomenon. It is recommended to use the ambient temperature within 130 degrees.

Cautions for the use of electromagnets:
1.The object absorbed must be a good magnetic material.
2.The suction surface of the electromagnet must be smooth and clean.
3.The thickness of the object is 5mm best.
4.The contact surface of the object must be larger than the adsorption surface of the electromagnet

Specification:

Material: Metal

Input Voltage: 5V DC

Peak Force: 50N

Holding Force: 37N

Duty-cycle: 50%

Power-on time: Less than 7 minutes

Overall Size: 25 x 20 mm / 1 x 0.8 inch(Dia. *T)

Thread Dia: 4mm

Wire Length: 24cm/9. 5 inch

Package Includes:

1 x Holding Electromagnet
