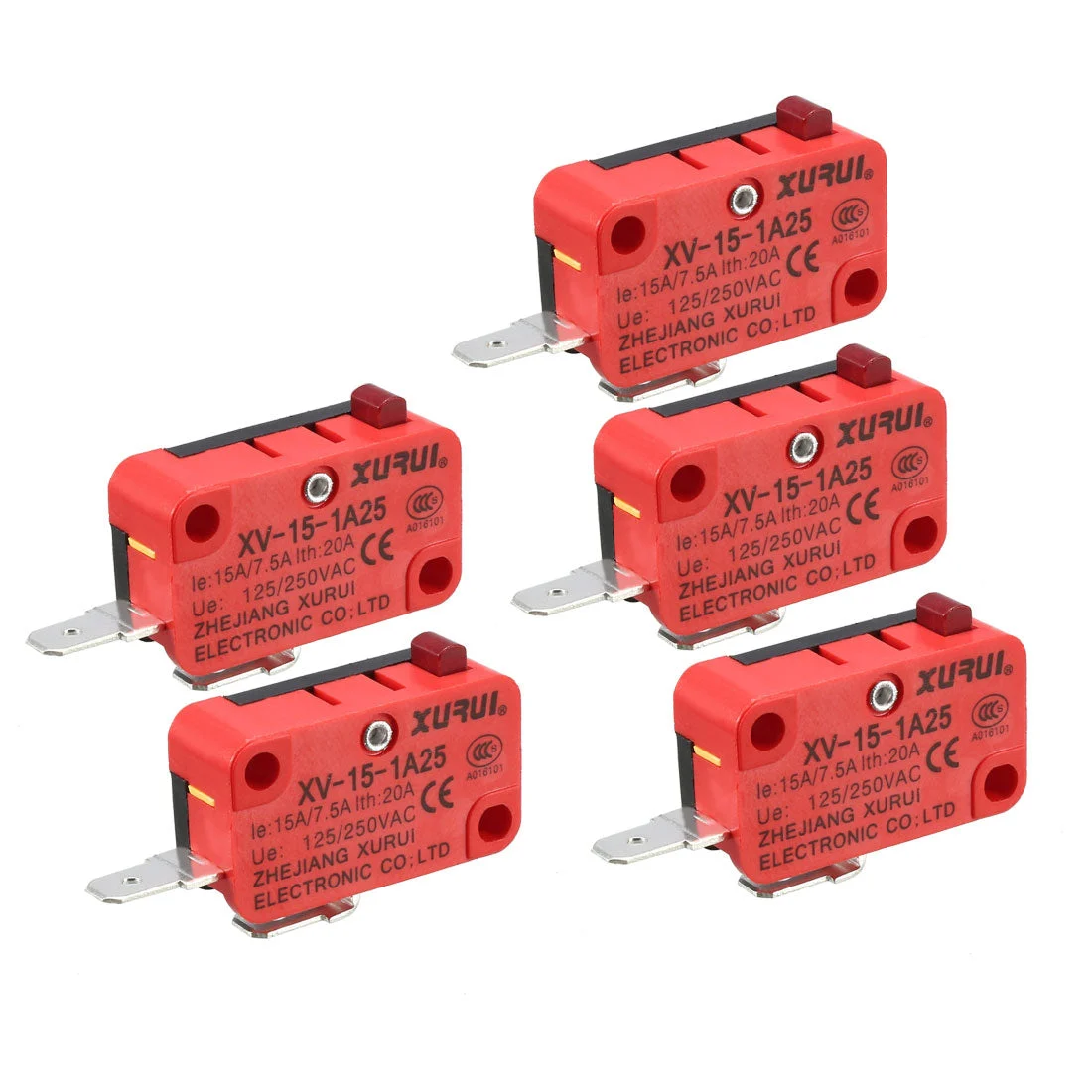

5PCS Push Button Action Micro Switches for Microwave Oven Door

About this item

• Rating: Ue: AC125/250V, Ie: 15A/7.5A, Ith: 20A;
• OF max. 200g Force min. 50g PT max. 1.2mm OT min. 0.6mm Movement Differential max. 0.3mm Operating Position 14.7+/-0.5mm
• Contact Form: SPST-NO
• Operation speed: 0.1mm-1m/s
• Widely used in appliance, electronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electro motion tool , etc.

Widely used in appliance, electronic equipment, automatic machine, communication equipment, electric, apparatus and instrument, electro motion tool , etc.

Specification

Rating: Ue: AC125/250V, Ie: 15A/7.5A, Ith: 20A;

OF max.   200g

Force min.   50g

PT max.   1.2mm

OT min.   0.6mm

Movement Differential max.   0.3mm

OP   14.7+/-0.5mm

Contact Form: SPST-NO

Pin number: 2

Operation speed: 0.1mm-1m/s

Insulation resistance: 100m Ohm Above DC500V

Contact resistance: 25m Ohm initial value

Life: 100000 times above(Electrical); 1000000 times above(Mechanical)

Protection degree: IP40

Operating temperature: -25~+80°C

Certification: UL/CE/

Overall size: 38x21x10mm/1.5×0.83×0.39inch(L*W*H)

Total weight: 30g

Package Content

5pcs x Micro Switch
