About this item
- Rating Load: 16A 125/250VAC. And the contact type is SPDT NO+NC
- 3 pins, applicable to AC DC control circuits.Reliable for years
- High precision design, use easily. Designed to control the movement of a mechanical part.
- IP 40 Protection Degree. Which means this switch is available to tools & small wires (>1mm)
- Widely used in appliances, automatic machine, communication equipment, car electric, apparatus and instrument, electro motion tool, etc.
Features
Offers long service and operations life.
Small contact gap, snap section, high sensitivity, and small operating travel
Widely used in appliances, electronic equipment, automatic machine, communication equipment, electric, apparatus and instrument, electro motion tool, etc.
Specification
Rating Load: 16A 125/250VAC
Operation speed: 0.1mm-1m/s
Contact resistance: 15m Ohm max. (initial)
Insulation resistance: 100m Ohm min. (at DC500V)
Dielectric strength: 1,000 VAC 50/60 Hz for 1minute
Life: 100,000 operations min. full load (Electrical); 10,000,000 operations min.(Mechanical)
Operating temperature: -25~+80°C
Contact Form: SPDT NO+NC
Pin number: 3
Overall size: 51x22x10mm/2.01×0.87×0.39inch(L*W*H)
Total weight: 40g
Package Content

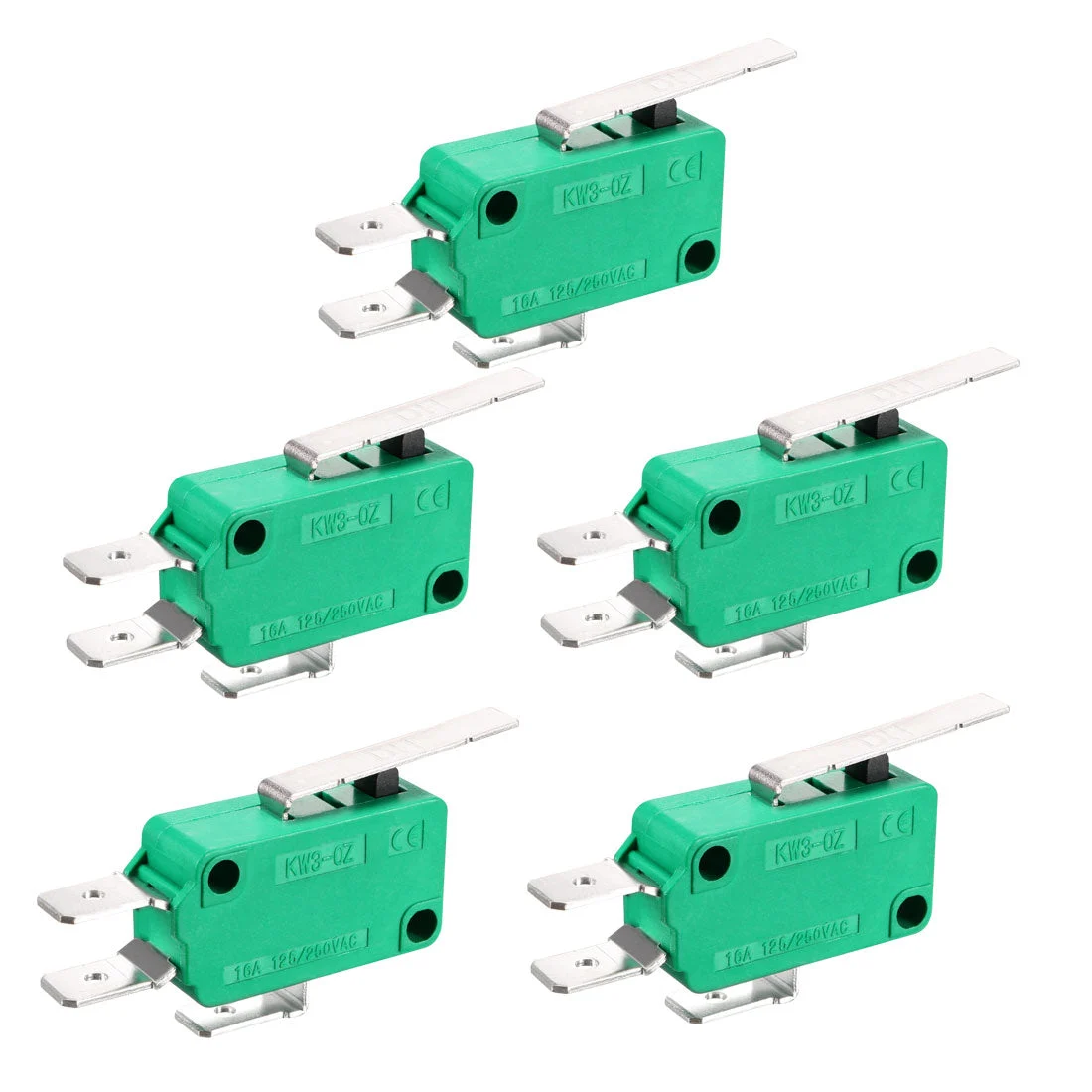

5 x Micro switch
