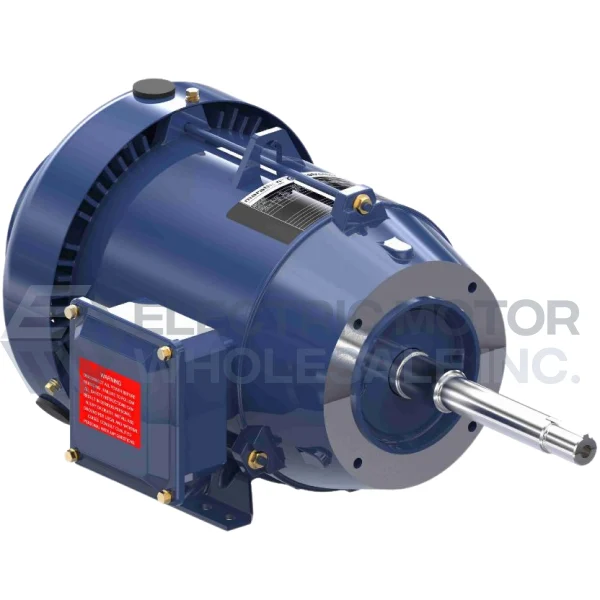

5HP MARATHON 3510RPM 184JP TEFC 3PH PUMP MOTOR GT3412A

APPLICATIONS: Close-coupled pump where the pump impeller is mounted directly on the motor shaft in environments that are relatively clean and dry.

FEATURES:

• Meets or exceeds all NEMA mandated efficiencies
• NEMA JP pump shaft dimensions
• JP frame has rigid base, drip cover not included
• 1.15 service factor on 60 Hz sine wave, 1.0 service factor on IGBT power
• Dual rated motors are nameplated 60/50 hertz, 190/380 volts at next lower HP
• Class F insulation
• Ball bearings, mechanically locked on shaft end

This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays. Do not use this product in an explosion-proof application.

Specifications
