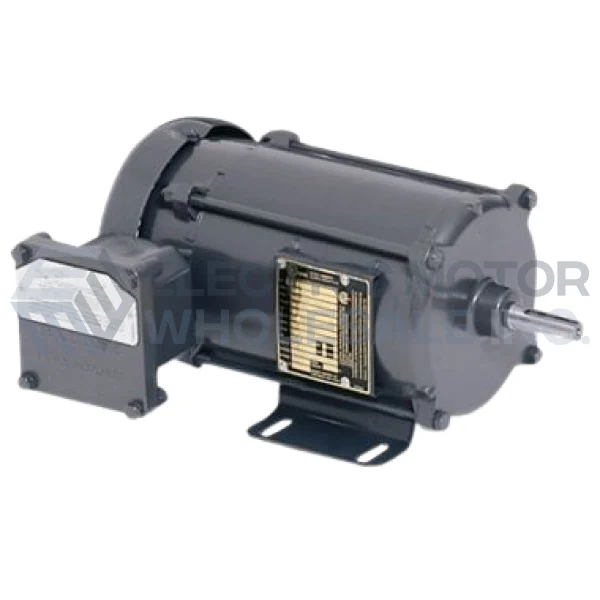

Division 1 Explosion Proof motors are designed and built to contain an explosion inside and not propagate it into the surrounding atmosphere.
APPLICATIONS: Pumps, fans and conveyors with fixed and variable speed operation
FEATURES:
- Auto thermal overload (<1 Hp), normally closed thermostats (≥1 Hp)
- Threaded lead inlet
- Low noise vibration dampening bases
CAUTION: Explosion-proof motors have a tight fit between mating parts to ensure the integrity of the explosion-proof enclosure. This can lead to an accumulation of moisture inside the motors due to condensation. If internal condensation buildup is a concern for your XP motor application, select a motor that includes UL listed breather drain. Care should be used when selecting an explosion-proof motor, especially when installed outdoors and on intermittent duty. Consider Drill Rig Duty Explosion-proof motors for outdoor applications.
Specifications
|
Brand: |
Baldor |
|
Application: |
Explosion Proof |
|
Output HP: |
5//3 |
|
Output KW: |
3.7 |
|
Output RPM: |
3470//2870 |
|
Frame Size NEMA: |
184T |
|
Mount NEMA: |
With Base |
|
Enclosure NEMA: |
XPFC |
|
Enclosure IEC: |
IP54 |
|
Voltage: |
230/460//190/380 |
