About this item

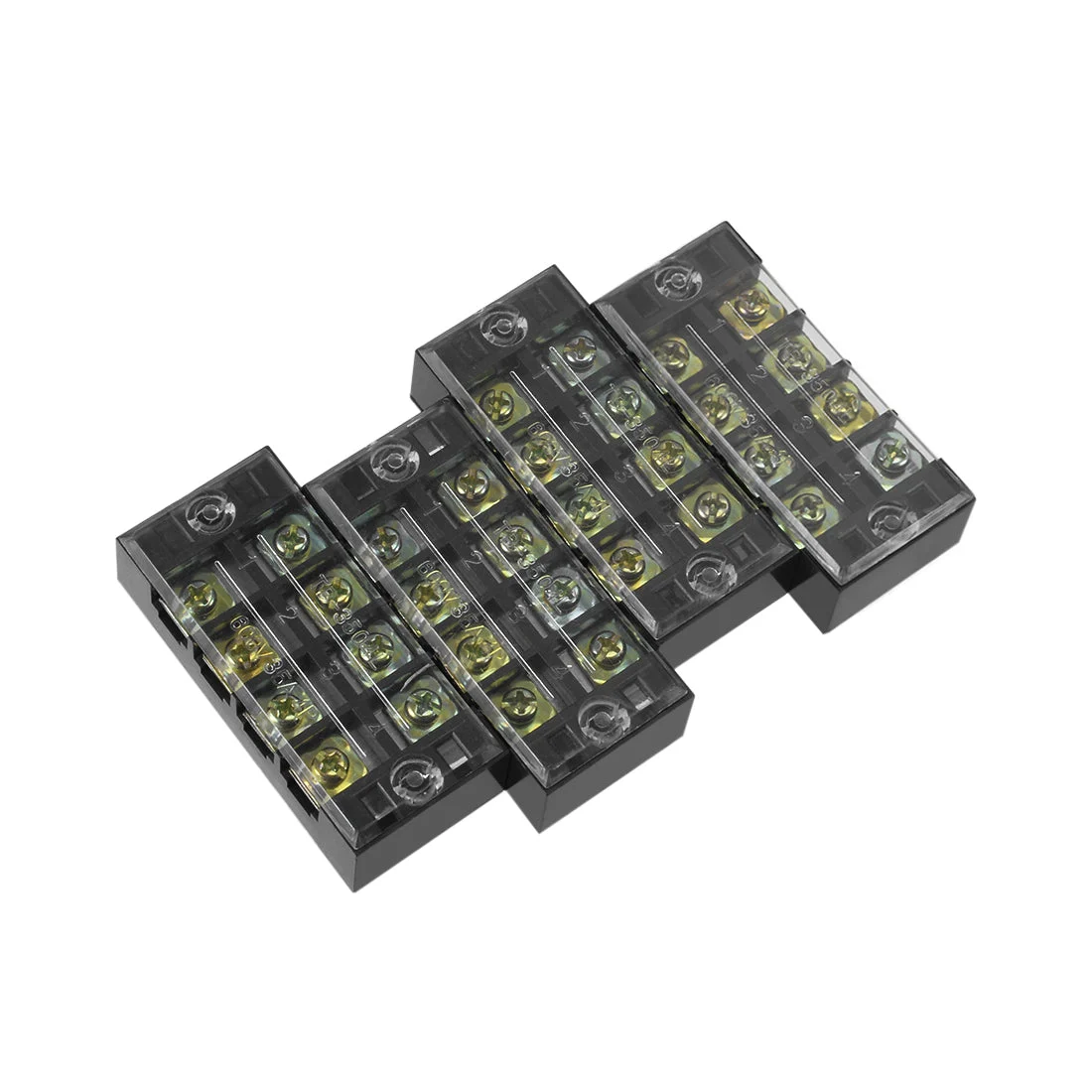

- Product Name : Barrier Terminal Strip;Rating : 600V 35A;Poles : 4 Position, Dual Row
- Material : Copper, PVC;Color : Black, Brass Tone
- Terminal Quantity : 8;Size : 67.74 x30 x 17mm / 7.48″ x 1.18″ x 0.67″(L*W*H)
- Model : TB-3504L;Each Screw Terminal Width : 10.3mm/0.41″
- Package Content : 4 x Barrier Terminal Strip;Net Weight :142g
Description:
1. Double rows and with removable clear plastic insulating cover.
2. Each pair of terminals is insulated from the next, prevent circuit in trouble.
3. The set screws secure wires reliable contact and help prevent accidental contact with the terminals.
4. Used for wires connecting of home appliances, electronic circuits, machines, etc.
5. One mounting hole each end for fixed mounting, easy to install.
Specifications:
Product Name: 4 Positions Barrier Terminal Block
Maximum Rated Voltage: 600V
Maximum Rated Current: 35A
Poles: 4 Positions (Dual Row)
Size: About: 2.65 inch(L) x 1.18 inch(W) x 0.69 inch(H)
Model: TB-3504L
Colour: Black
Weight: 142g
Package Inculde:
4 Pcs x Barrier Terminal Block
