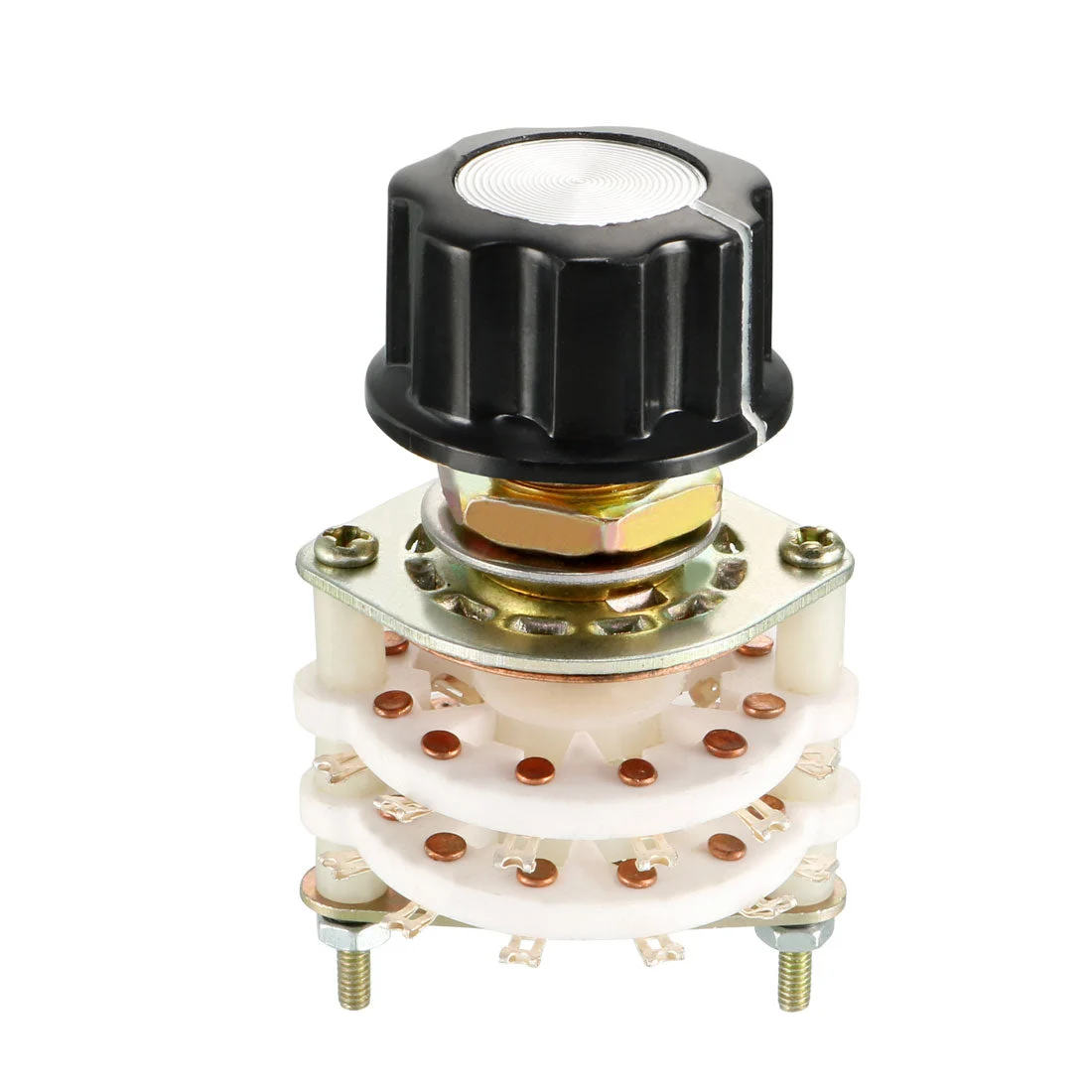

4P5T 4 Pole 5 Throw 2 Deck Band Channel Rotary Switch Selector with Plastic Knob

About this item

• Product Name : Band Selector Rotary Switch
• Contact Type :4 Pole 5 Position,2Deck
• Fit Mounting Hole Diameter: 10mm / 0.39″ ; Pin Number : 24
• Rotating Shaft Dia : 6mm / 0.24″ ; Shaft Length : 12mm/ 0.47″
• Comes with mounting nut and black plastic knob, no worry about knob size mismatching

 Description:

• 4 Pole 5 Position design, plastic metal material, easily turned.
• Comes with mounting nut and black plastic knob, no worry about knob size mismatching
• Widely used on radio, TV, industrial machine control unit, or other electronic devices.

Specification:

• Product Name : Band Selector Rotary Switch
• Package Content : 1Pcs x Rotary Switch
• Model : KCX 4*5+A03
• Material : Metal, Plastic
• Contact Type :4 Pole 5 Position,2Deck
• Pin Number : 24
• Fit Mounting Hole Diameter: 10mm / 0.39″
• Rotating Shaft Dia : 6mm / 0.24″ ; Shaft Length : 12mm/ 0.47″
• Dimensions :50.5 x 30mm / 2.0″ x 1.18″ (Max.H*W)
