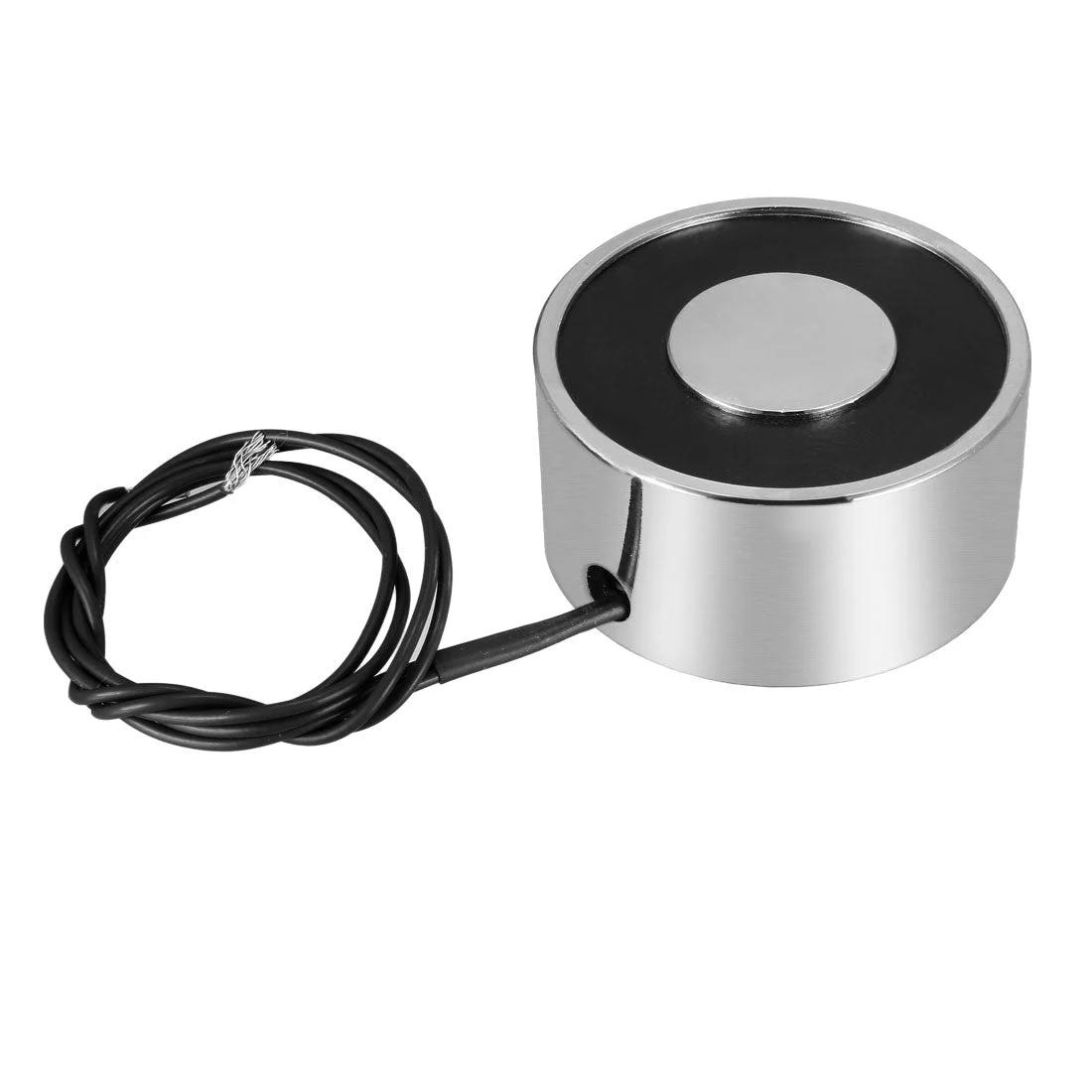

About this item
- 【Holding Electromagnet Parameters】- Voltage: DC24V; Peak Force :25kg Holding Force : 18.5Kg;Suction Surface Diameter :Φ18
- 【Dood Design】- Thread Size :M5 ; Lead Length : 260mm / 10.24-inch ; Overall Size : 20 x 40mm / 0.79-inch x 1.57-inch (H*D)
- 【ADVANTAGES】- Eelectric Lifting Magnet Electromagnet Simple structure, small volume, high adsorption force.copper coil inside, has good temperature stability and insulation, high eelectrical conductivity
- 【NOTED】- The suction contact area of the object to be sucked must be larger than the suction surface of the solenoid electromagnet suction cup,The object absorbed must be clean and The thickness of the object is 5mm best.
- 【APPLICATION】- Eelectric Lifting Magnet Electromagnet use in vending machines, transport equipment, office facility household appliance, mechanical, etc game machine,Sorting machine,door lock,etc.
Feature:
Eelectric lifting magnet
Powerful and compact
Smooth and flat surface
Low consumption and reliable
Applications: assembly line, sorting machine, mechanical arm, experimental facility, etc
Specification:
Material: Pure Iron
Input Voltage: 24V DC
Peak Force :25kg
Holding Force : 18.5Kg
Suction Surface Diameter : 18
Thread Size :M5
Overall Size : 20 x 40mm / 0.79-inch x 1.57-inch (H*D)
Lead Length : 260mm / 10.24-inch
Cautions for the use of electromagnets:
1.The object absorbed must be a good magnetic material.
2.The suction surface of the electromagnet must be smooth and clean.
3.The thickness of the object is 5mm best.
4.The contact surface of the object must be larger than the adsorption surface of the electromagnet
Package Includes:1 x Holding Electromagnet
