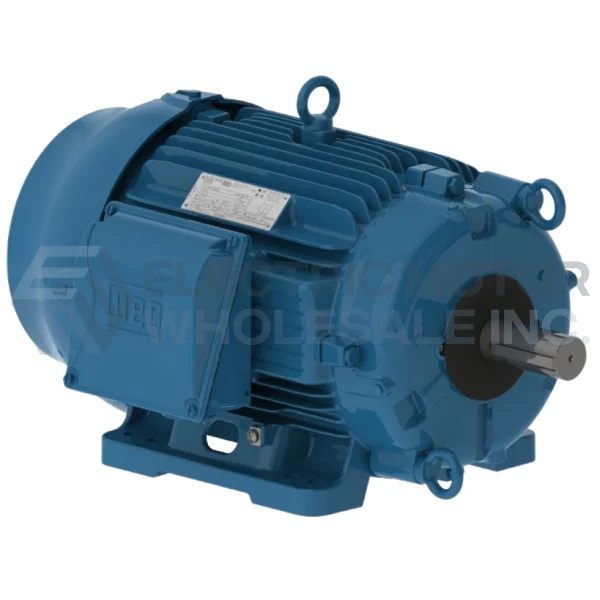

WEG’s TEFC Cooling Tower Motors are designed for operation in 100% humidity and the most corrosive environments. They are designed to operate in either horizontal or vertical mounting. WEG’s W22 cast iron platform has a superior cooling system and solid feet for cool operation and low vibration and noise extending the life of the motor.
Features:
- Stainless Steel Nameplate – Laser etched with high contrast background
- Double Sealed bearings
- Multiple end-bell drain plugs for shaft up, down or horizontal mounting
- Space Heaters
- Drain plugs in terminal box
- Rubber lead separator between terminal box and frame
- Internally and externally epoxy painted
- Double sealed bearings
- Double impregnation and bake
Specifications
|
Brand: |
WEG |
|
Application: |
Two Speed |
|
Output HP: |
40/10 |
|
Output KW: |
30/7.5 |
|
Output RPM: |
1780/885 |
|
Frame Size NEMA: |
324/6T |
|
Mount NEMA: |
With Base |
|
Enclosure NEMA: |
IC411 – TEFC |
|
Enclosure IEC: |
IP55 |
|
Voltage: |
200 |
