About this item
- 【UNIVERSAL DESIGN】 – Pneumatic Solenoid Valve Type: 3 Port 2 Position Normally closed type ; Air Flow In and Out Hole Size : 1/8″ PT
- 【ATTENTION】- Please pay attention to the direction of gas flow and the correct connection when installing.
- 【APPLICATION】 – Single Control Valve Used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted.
- 【ADVANTAGE】 – Air Solenoid Valve has Single Control Solenoid Valve have Internal pilot structure, sliding column structure, good sealing and responsive.
- 【 MATERIAL】 – The electromagnetic valve use of copper full-size coils, the solenoid valve is not easy to use for a long time, and the life is durable.
Specification:

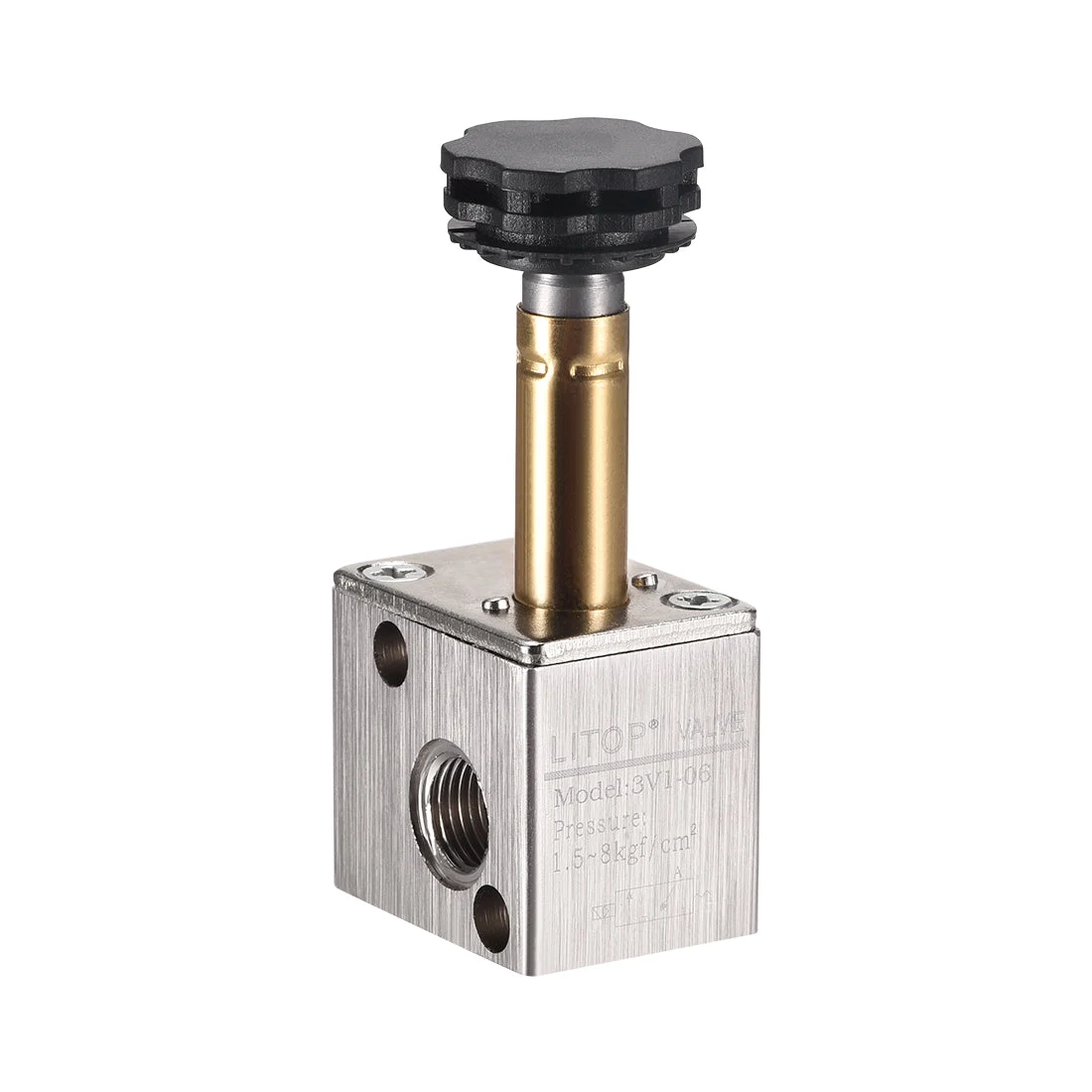

Product Name : Solenoid Valve
Model: 3V1-06
Weight: 71g
Color : Black,Silver Tone
CV values: 0.67
Valve Type: 3 Port 2 Position
Mounting hole Size : 3.2mm / 0.13
Air Flow In and Out Hole Size : 1/8″ PT
Seal material: NBR
Main parts material: Aluminum alloy
Working pressure: 0.15~0.8mpa (21~114 psi)
Operating temperature: 5~60 Degree Celsius
Total Size : 63 x 22 x 30mm /2.48″ x 0.87″ x 1.18″ (L x W x H)
Package Included:
1 x Solenoid Valve
Description:
1.The strength of the aluminum alloy valve body is large. The valve body is made of new aluminum alloy material, which has strong pressure resistance,good corrosion resistance and fast heat dissipation.
2. sealing ring. seals for durability and longer life
3.High precision valve stem. Imported lubricants to ensure lubrication and reduce friction during exercise
4.High frequency sub-head. Made of conductor material with 6 times in 1 second high intensity and high frequency response for smoother operation
5.Used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted.
Note:
Lights up when power is on
The valve is N / C (normally closed), meaning it will shut down when not powered.
