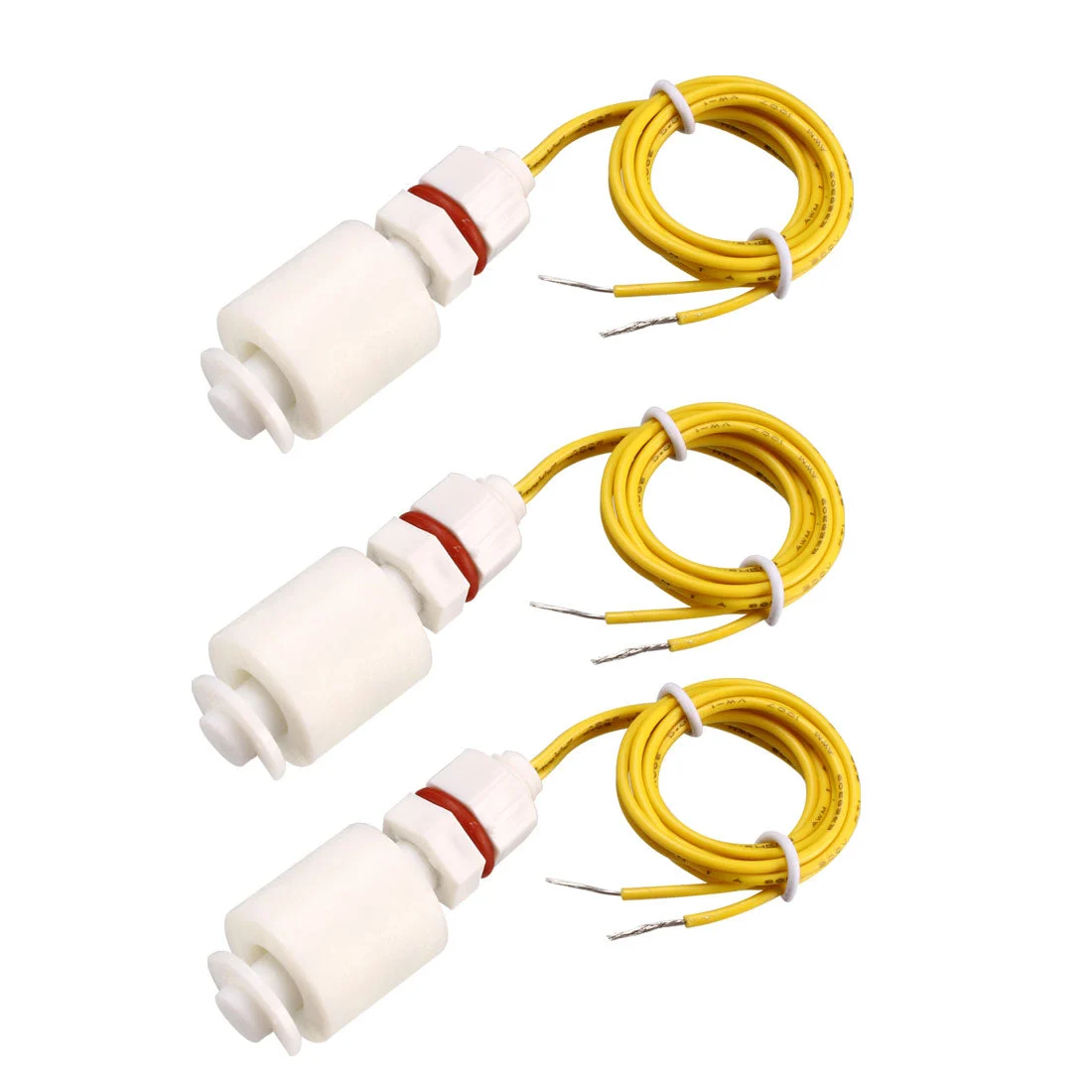

3pcs PP Float Switch M8 45mm Fish Tank Vertical Liquid Water Level Control Sensor Plastic White

About this item

• Total Length: 45mm / 1.77″; Float Ball Size(Approx): 17.7 x 17.7mm / 0.7″ x 0.7″ (L*D); Thread Dia(Approx): 8mm / 0.31″; Cable Length: 36cm / 14.2″
• Max Switching Voltage/Current: 110V DC/0.5A
• HOW TO WORK – By using a magnet to sense the reed switch. Float switch is mainly composed of a magnetic spring switch and a float. There are magnetic materials in the float. When the float moves up and down with the water level, it will touch the magnetic spring switch to detect the liquid position
• WIDELY APPLICATION – Float switch can be used for water heating equipment such as water dispenser, water heater, humidifier, etc. It also can be used for water tower, drainage pool, water tank, culture pond, etc
• PLEASE NOTE – Because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay or contactor are not included here.

Specifications:Product Name: Float Switch
Max Contact: Rating 10W
Max Switching Voltage: 110V DC
Max Switching Current: 0.5A
Max Breakdown Voltage: 220V DC
Max Contact Resistance: 100mohm
Temperature Rating: -10 ~ +60 C / 85 C
Float Ball Material: PP
Float Body Material: PP
Float Ball Size(Approx): 17.7 x 17.7mm(L*D)
Thread Dia(Approx): M8
Body Total Length: 45.8mm
Cable Length: 36cm
Color: White;Yellow
Net Weight: 28g

Package Content
3pcs x Float Switch
Description:A float switch is a device used to sense the level of liquid within a tank. The switch may actuate a pump, an indicator, an alarm, or other device.
It can be easily converted from normally open to normally close by inverting the float.
Note:
because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay and contactor are not included here.
