About this item
- ABS Normally Open Door Contact Switch
- 0.5A Maximum Switch Current
- Will make Sense Door Closer at Roughly 10mm
- Self-Adhesive Mount, Screw Surface Mount
- Long wire lead that is side mounted
Description:
1.Self-Adhesive Mount, Screw Surface Mount contact, ABS Housing. Long wire lead that can side mounted.
2.Switch Type: NO means Normally Open: when the magnet separate, the circuit is conductive( light on );When the magnet together, the circuit is not conductive ( light off ).When make order,pls check carefully!
3.Work as an anti-theft alarm, perfect for wood door and window.
Specification:

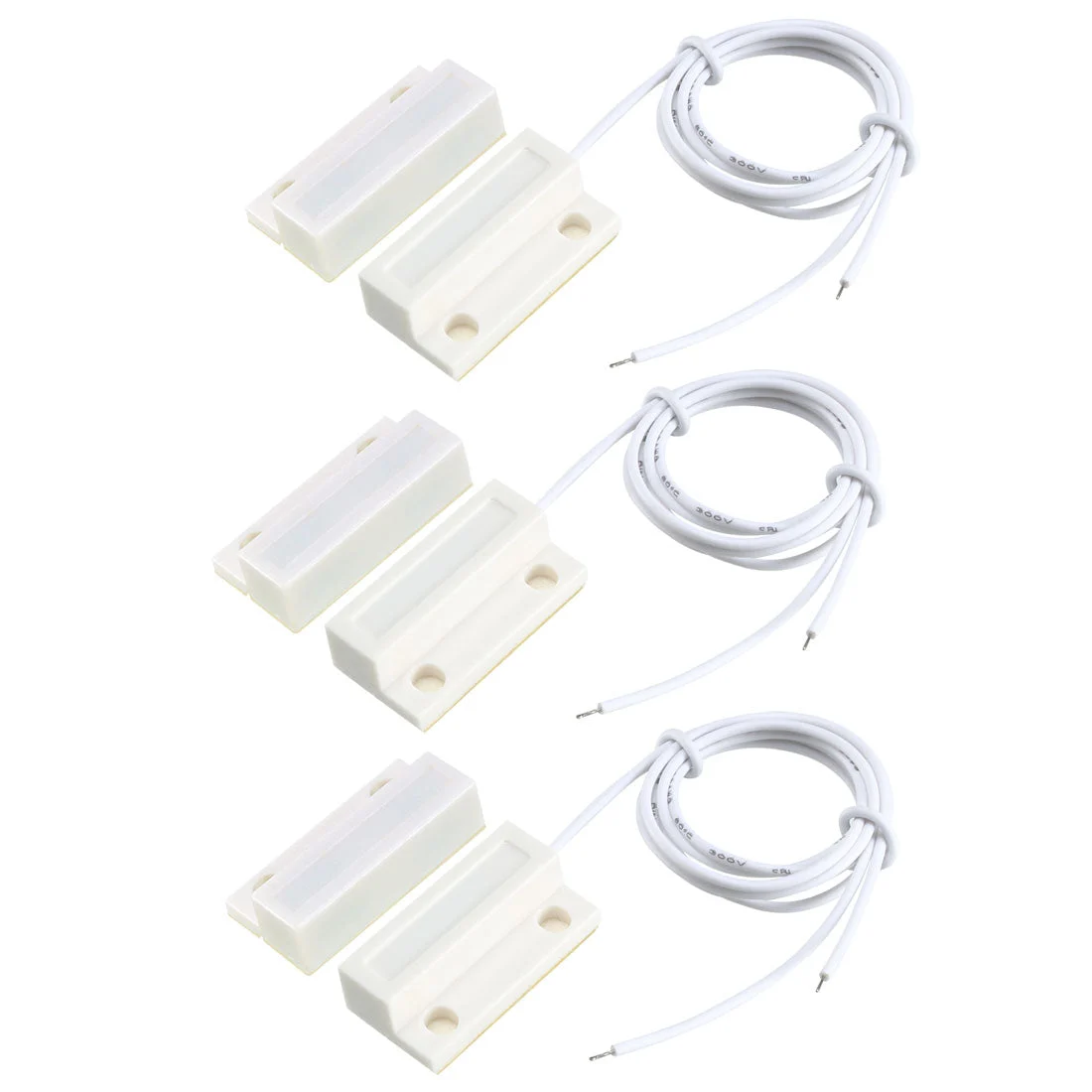

Product Name: Magnetic Door Switch
Model: MC-38
Contact Type: NO (Normally Open)
Actuation Distance: 10mm
Max. Current: 0.5A
Max. Power: 10W
Working Voltage: DC100V
Each Size(Approx): 27.5 x 14 x 8.5mm / 1.08 x 0.55 x 0.33-inch (L*W*H)
Mounting Hole Diameter: 4mm/0.16-inch
Cable Length(Each): 26cm /10.24″
Material: ABS (Housing)
Wire Type: 1007UL#24AWG
Color: White
Net Weight: 24g
Package Content:
3pcs x Magnetic Door Switch, Some Install Parts
Note: Door magnetic induction can only provide a switch signal, which can not directly load the power, nor directly connect the lamp!
