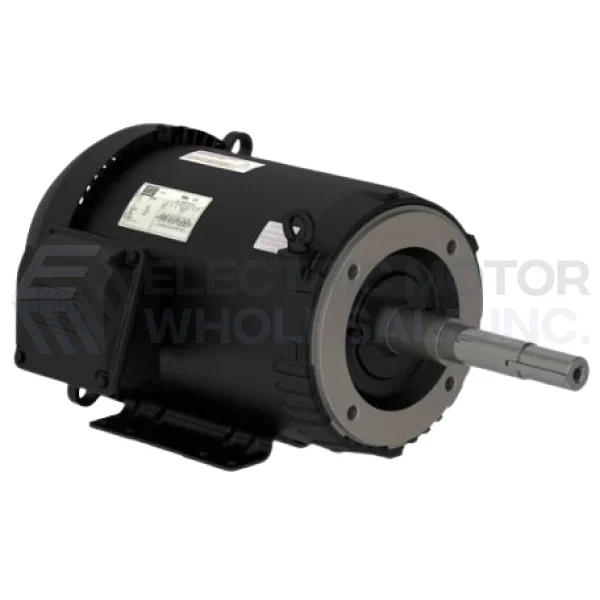

WEG Three Phase JP Pump Motor with Internal AEGIS SGR is designed for high performance with maximum energy efficiency.
Features:
- Inverter Rated 1000:1 VT
- NEMA Super Premium efficiency rating
- Durable rolled steel frame
- 50/60Hz rated (same HP at 50Hz with a 1.0 SF)
- Class F insulation (Impregnation resin and magnet wire are class H)
- F1 mounted (cast iron frames are F2 convertible)
- Stainless steel nameplate – laser etched with high contrast background
- Regreasable ball bearings
- Gasketed conduit box
- Class 1 Div. 2 Groups A, B, C, D – T3
- Class 2 Div. 2 Groups F, G – T3C
- 1.15 Service Factor
- Optimized ventilation system for cooler operation and reduced noise level
- Solid base for reduced vibration levels
- NPT threaded terminal box
Specifications
|
Brand: |
WEG |
|
Application: |
Closed Coupled |
|
Output HP: |
3 |
|
Output KW: |
2.2 |
|
Output RPM: |
3515//2860 |
|
Frame Size NEMA: |
182/4JP |
|
Mount NEMA: |
C Face With Base |
|
Enclosure NEMA: |
TEFC |
|
Enclosure IEC: |
IP55 |
|
Voltage: |
230/460//190-220/380-415 |
