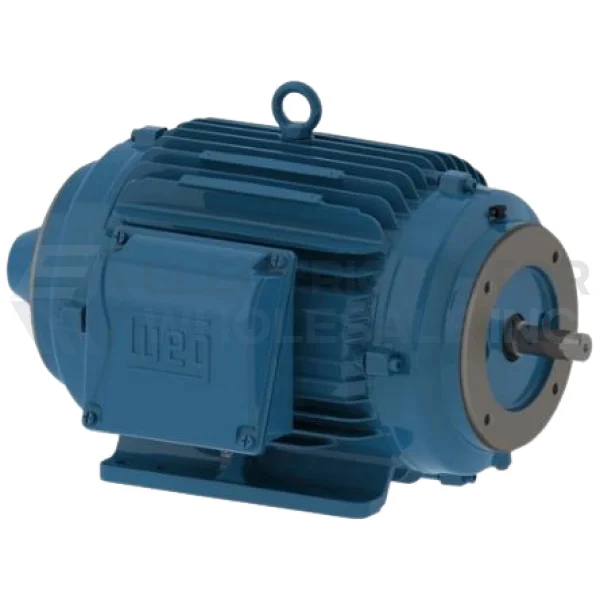

WEG Three Phase Vector Duty Motos are designed specifically for inverter operation, allowing its use in applications requiring 1000:1 constant torque turndown ratio.
Features:
- NEMA Premium Efficiency
- All Cast Iron Construction
- IP55
- Constant torque operation from 0 to base speed (1000:1) on PWM Vector Drive
- Constant Horsepower operation up to 150% base speed
- Ready for encoder mount
- Totally Enclosed Non-Ventilated
- C-face mount with feet
- With thermostats (1 per phase)
- Ready for C-face brake, limited to 10 lb-ft braking torque
- Class F insulation (Impregnation Resin and Magnet wire are class H)
- NEMA design B
- F1 Mounted (F2 convertible)
- Stainless Steel Nameplate – Laser etched with high contrast background. Special nameplate data for easy drive set-up.
- Spike Resistant Wire
- Gasketed conduit box
Applications:
- Conveyors
- Crane and hoists
- Extruders
- Metal Processing
- Any that would require constant torque over a wide speed range
Specifications
|
Brand: |
WEG |
|
Application: |
Vector Duty |
|
Output HP: |
3 |
|
Output KW: |
2.2 |
|
Output RPM: |
1750 |
|
Frame Size NEMA: |
182/4T |
|
Mount NEMA: |
C Face With Base |
|
Enclosure NEMA: |
IC410 – TENV |
|
Enclosure IEC: |
IP55 |
|
Voltage: |
230/460 |
