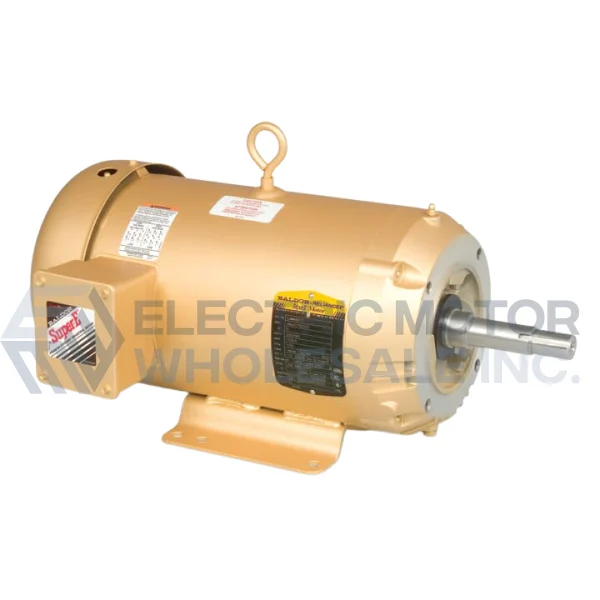

Baldor Three Phase Premium TEFC Close-Coupled JM Pump Frame Motors with AEGIS Grounding Ring: Designed for operations where continuous or frequent duty is used with a Variable Frequency Drive VFD. Usable for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit. Super-E motors are designed to conserve energy over extended time periods.
FEATURES:
- Super-E Premium Efficient Motor
- Class H insulated with AEGIS shaft grounding ring installed internally
- Heavy gauge steel frames
- Moisture resistant ISR® (Inverter Spike Resistant) copper windings
- Over-sized ball bearings with locked drive end construction to minimize endplay
- Low-loss electrical grade lamination steel
- Three year warranty
Specifications
|
Brand: |
Baldor |
|
Application: |
AEGIS Closed Coupled |
|
Output HP: |
3 |
|
Output KW: |
2.2 |
|
Output RPM: |
1760 |
|
Frame Size NEMA: |
182JM |
|
Mount NEMA: |
C Face With Base |
|
Enclosure NEMA: |
TEFC |
|
Enclosure IEC: |
IP44 |
|
Voltage: |
230/460//190/380 |
