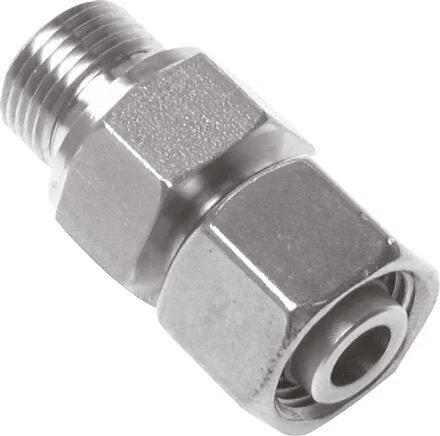

This stainless steel 1.4571 straight screw in connection is designed with swivel tube connection port and a threaded connection. It has an adjustable connection. Connection 1 has a 38 mm swivel tube connection. Connection 2 has male M 48×2 threads. The seal material is FKM. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- It has adjustable connection
- Stainless steel material has better chemical resistance than other materials
- Suitable for hydraulic applications
Specifications
Thread : M48 x 2
Load class (DIN 2353) : S (heavy)
Swivel tube connection : 38 S
Connection type : Outer thread metric,Swivel tube connection
Material : Stainless steel
Seal material : FKM (FPM)
Max pressure at 20 °C (bar) : 315
Min temperature (°C) : -20
Max temperature (°C) : 200
Standard : DIN EN ISO 8434-1 (DIN 2353)
Fitting features : Adjustable
Quality of material : Stainless steel (1.4571)
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel (1.4571)
Shape : Straight
With drain : No
