About this item

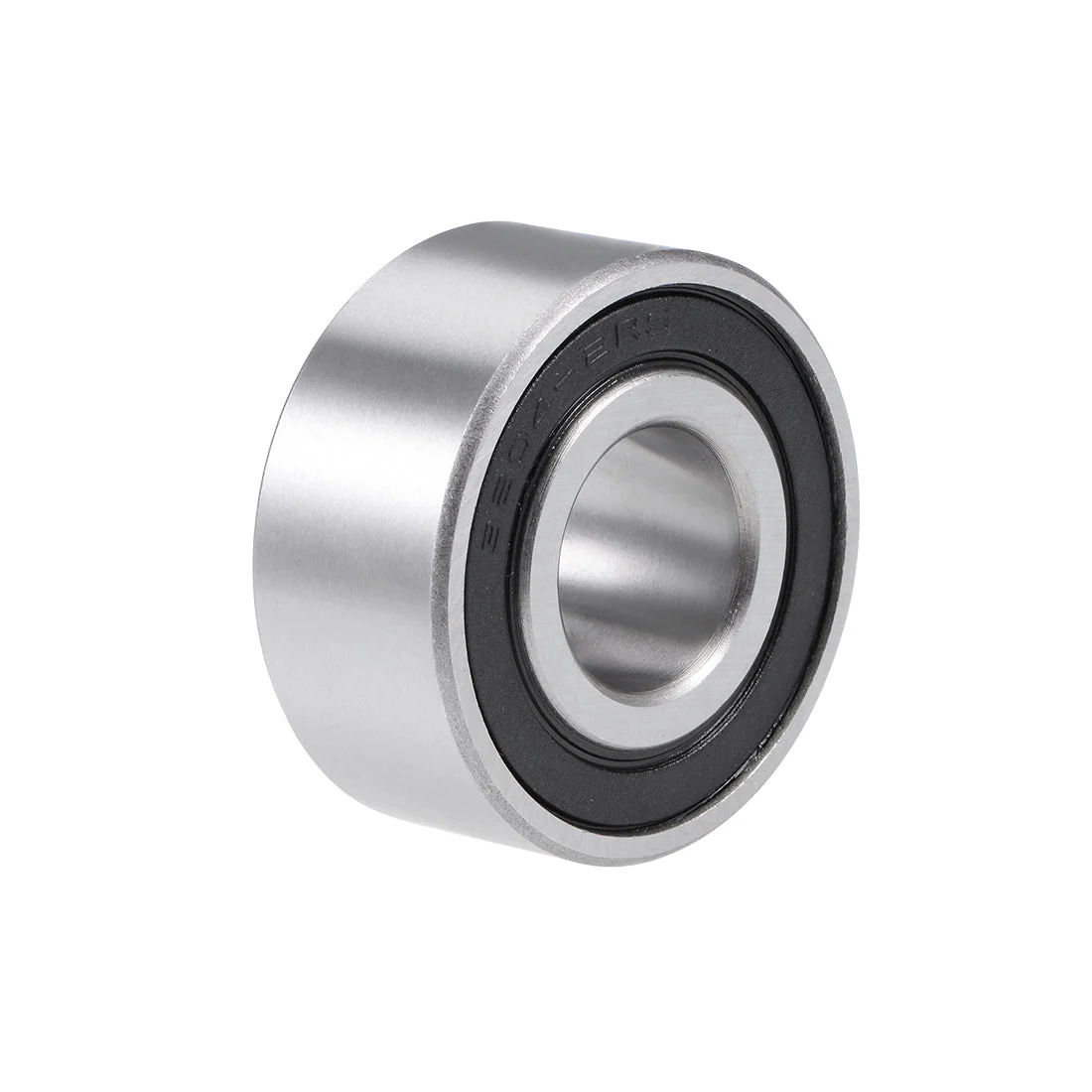

- 3204-2RS (I.D.=20mm, O.D.=47mm, Thickness=20.6mm)
- 3204rs bearings are sealed on BOTH SIDES to keep lubricant in
- Static load rating of 17200 newtons and dynamic load rating of 15000 newtons
- Chromium Steel long-life bearings, smooth and low noise
- ABEC Tolerance 1 (P0), Z1 Noise Level for most general use
Description:
- Double-row, pre-lubricated, normal accuracy.
- Angular Contact Ball Bearings are designed to accommodate combined loads. They accommodate radial as well as loads and tilting moments in either direction.
- The load carrying capacity of angular contact ball bearings increases as the contact angle increases.
- With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
- Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance.
- Suitable for use in commercial and industrial applications including pumps and compressors, gearboxes, and printing machines, among others.
Specification:
Model: 3204-2RS (5204-2RS)
Seal Type: Double Sealed
Inner Race/Outer Race Material: Chrome Steel (GCr15)
Cage Material: Stamping Steel
Inner Diameter (d): 20mm
Outer Diameter (D): 47mm
Thickness (B): 20.6mm
Dynamic Load Rating (Cr): 17.2kN
Static Load Rating (Cor): 15.0kN
Accuracy Class: P0 (ABEC-1)
Noise Level: Z1
Number of Pack: 1 Pcs
