About this item

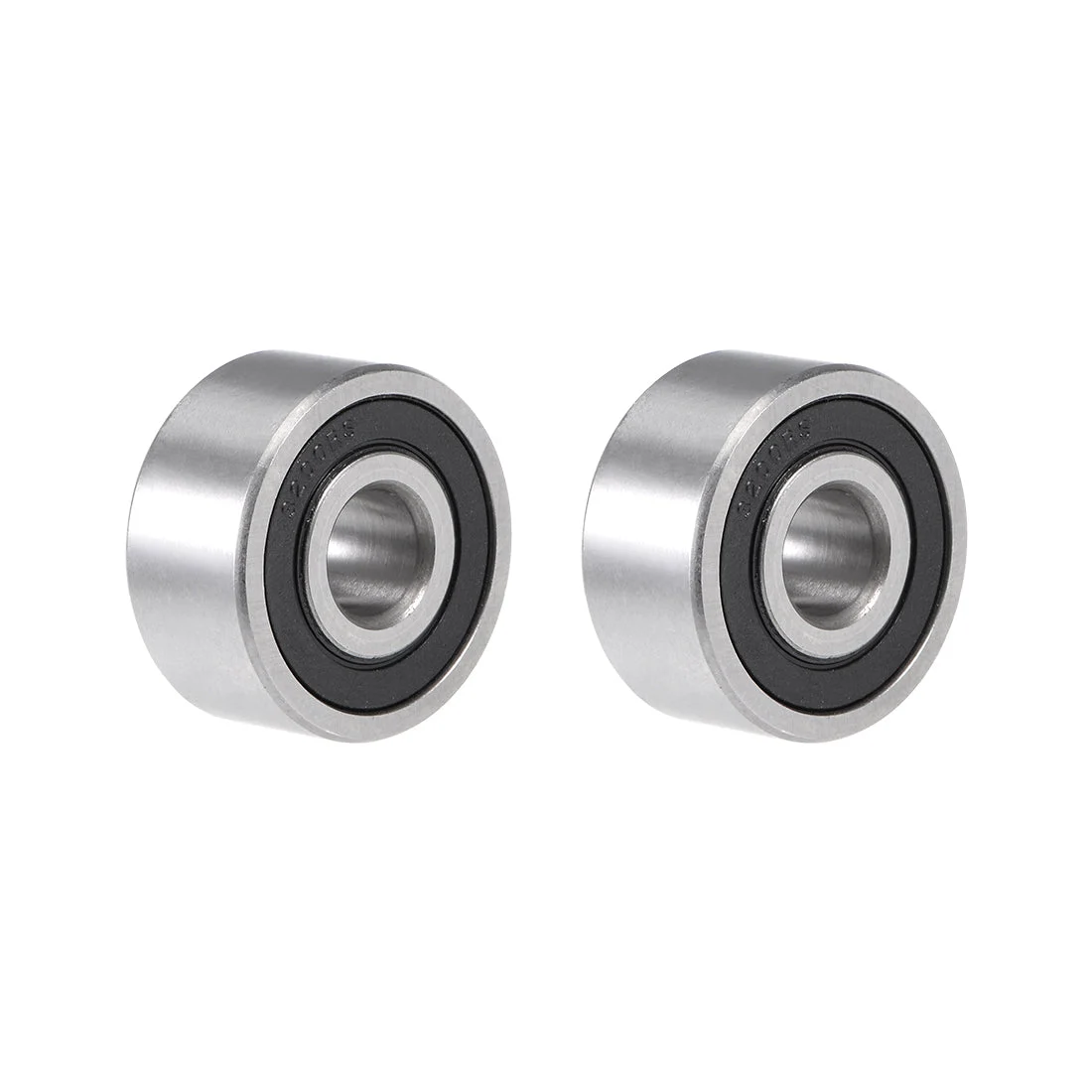

- 3200-2RS (I.D.=10mm, O.D.=30mm, Thickness=14.3mm)
- 3200rs bearings are sealed on BOTH SIDES to keep lubricant in
- Static load rating of 5350 newtons and dynamic load rating of 7350 newtons
- Chromium Steel long-life bearings, smooth and low noise
- ABEC Tolerance 1 (P0), Z1 Noise Level for most general use
Description:
- Double-row, pre-lubricated, normal accuracy.
- Angular Contact Ball Bearings are designed to accommodate combined loads. They accommodate radial as well as loads and tilting moments in either direction.
- The load carrying capacity of angular contact ball bearings increases as the contact angle increases.
- With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
- Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance.
- Suitable for use in commercial and industrial applications including pumps and compressors, gearboxes, and printing machines, among others.
Specification:
Model: 3200-2RS (5200-2RS)
Seal Type: Double Sealed
Inner Race/Outer Race Material: Chrome Steel (GCr15)
Cage Material: Stamping Steel
Inner Diameter (d): 10mm
Outer Diameter (D): 30mm
Thickness (B): 14.3mm
Dynamic Load Rating (Cr): 7.35kN
Static Load Rating (Cor): 5.35kN
Accuracy Class: P0 (ABEC-1)
Noise Level: Z1
Number of Pack: 2 Pcs
