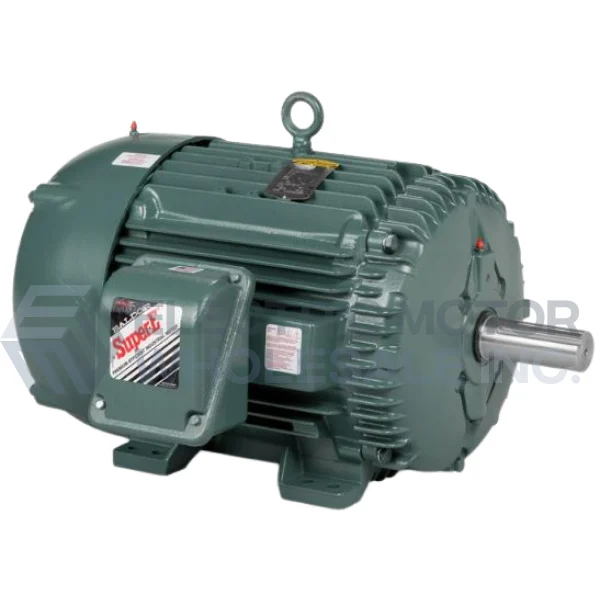

BALDOR 661XL / IEEE 841 Severe Duty Super-E Motors are designed for use in Petroleum, chemical and other industries with belt driven heat exchangers requiring premium efficient motors designed to API 661 standards of 40,000 hours bearing life.
Features:
- Meets IEEE Standard 841™-2021
- Roller bearing for belted applications, 40,000 hours L10 life per API 661
- Vertical lifting provisions for shaft up and shaft down mounting
- Patented PLS bearing lubrication system
- Dome shaft slinger, bronze labyrinth shaft seal, gasketed conduit box and cover
- Inverter ready nameplate
- Division 2, Class I, Groups A, B, C, D markings on nameplate
- Meets IEEE 45 on nameplate
- IEEE 841 test report ships with the motor
- 5 year warranty
Specifications
|
Brand: |
Baldor |
|
Application: |
661XL / IEEE841 |
|
Output HP: |
30 |
|
Output KW: |
22.0 |
|
Output RPM: |
1770 |
|
Frame Size NEMA: |
286T |
|
Mount NEMA: |
With Base |
|
Enclosure NEMA: |
TEFC |
|
Enclosure IEC: |
IP56 |
|
Voltage: |
460 |
