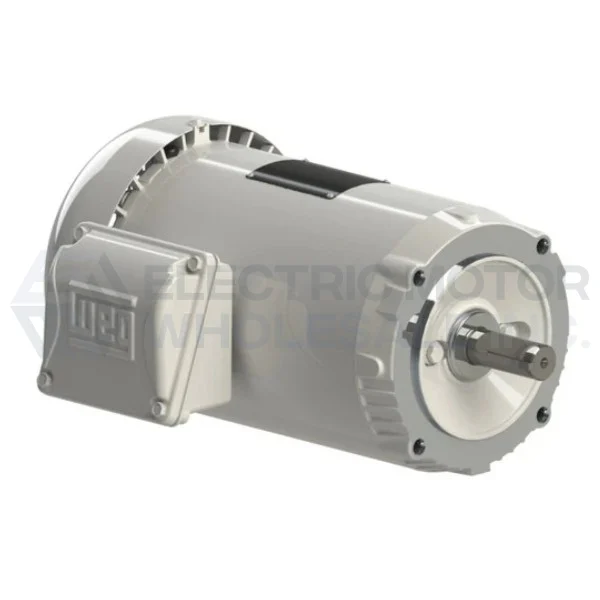

APPLICATIONS: HydroWash Washdown line was designed to meet the requirements of industries where there is a constant need for hygiene and cleanliness of the environment through high pressurewater jets and/or chemical products. Washdown motors are applied in food, beverage and pharmaceutical industries.
FEATURES:
- Totally Enclosed, non ventilated
- C-Face without base, footless mounting
- 5/8″ Keyed output Stainless Steel (AISI 303) shaft
- Degree of protection: IP56
- Class F insulation
- 1.15 Service Factor
- Double sealed ball bearings
- Meets NEMA MG1 Part 31 for Inverter Duty operation
- Certification CSA/UL
- Vibration: Grade A
- USDA-approved paint
- Type of grease: Mobil Polyrex EM
- Color: Porcelain White – Munsell N 9.5
This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays. Do not use this product in an explosion-proof application.
Specifications
|
Brand: |
WEG |
|
Application: |
Washdown Epoxy |
|
Output HP: |
3/4 |
|
Output KW: |
0.55 |
|
Output RPM: |
1770 |
|
Frame Size NEMA: |
56C |
|
Mount NEMA: |
C Face No Base |
|
Enclosure NEMA: |
TENV |
|
Enclosure IEC: |
IP56 |
|
Voltage: |
230/460 |
