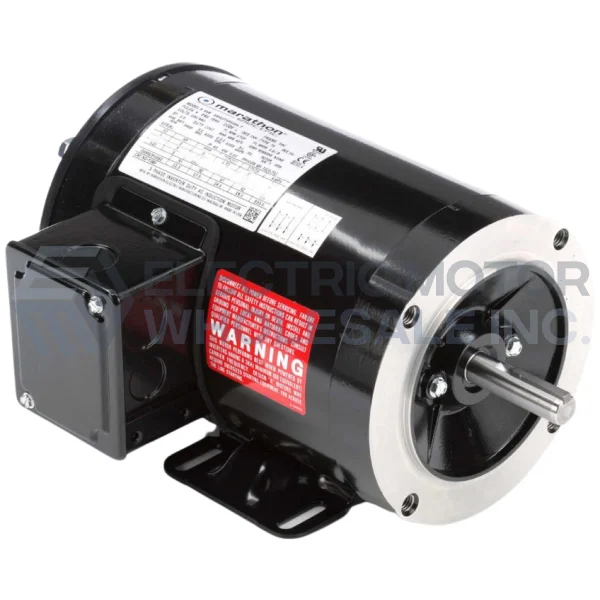

APPLICATIONS: The MAX+ incorporates low rotor inertia for fast starts, stops, and reversals. Coupled with a encoder make this useful in applications traditionally served only by servo systems. The MAX+ is also suitable for all applications where up to a 1000:1 Constant Torque speed range or positioning is required.
FEATURES:
- Integrated Dynapar HS20 1024 ppr encoder
- Class H insulation with CR200 corona resistant magnet wire
- Constant Torque operation from 0 to base speed on Vector Drive
- Ball bearings
- Bolt-on removable base for footless mounting option
- UL Recognized, CSA Certified, and CE Mark
- Three year warranty
Specifications
|
Brand: |
Marathon |
|
Application: |
Vector Duty |
|
Output HP: |
3/4 |
|
Output KW: |
0.55 |
|
Output RPM: |
1725 |
|
Frame Size NEMA: |
56C |
|
Mount NEMA: |
C Face With Base |
|
Enclosure NEMA: |
TENV |
|
Enclosure IEC: |
IP43 |
|
Voltage: |
230/460 |
