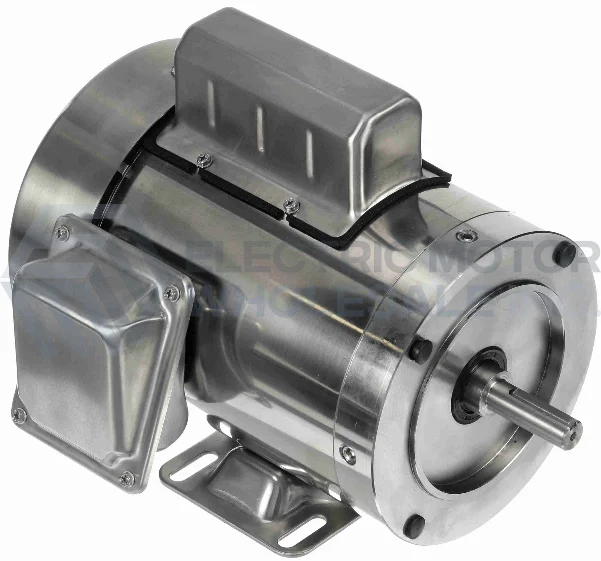

LEESON Single Phase SST WASHGUARD Motor is built with all stainless steel external components to prevent corrosion and is well sealed against moisture and condensation to protect internal components. All-stainless motors are able to withstand the severe washdown environments found in the food processing, chemical processing and beverage industries.
FEATURES:
- 5/8″ Keyed output shaft
- Capacitor Start
- 300 Series stainless steel exterior components: frame, base, endshields, shaft extension, fan guard, conduit box and cover
- Coating applied to rotor and heavy polyester varnish applied to stator to prevent corrosion
- Four condensate drains in each endshield
- Double-sealed bearings with moisture-resistant high-temperature grease
- UL Recognized and CSA Certified
- Warranty: 12 months from the date of purchase or 18 months from the date of manufacture, whichever comes first
Specifications
|
Application: |
Washdown Stainless |
|
Output HP: |
3/4 |
|
Output KW: |
0.56 |
|
Output RPM: |
1725 |
|
Frame NEMA: |
56C |
|
Mount NEMA: |
C-Face With Base |
|
Enclosure NEMA: |
TEFC |
|
Enclosure IEC: |
IP55 |
|
Voltage: |
115/230 |
|
Frequency (Hz): |
60 |
