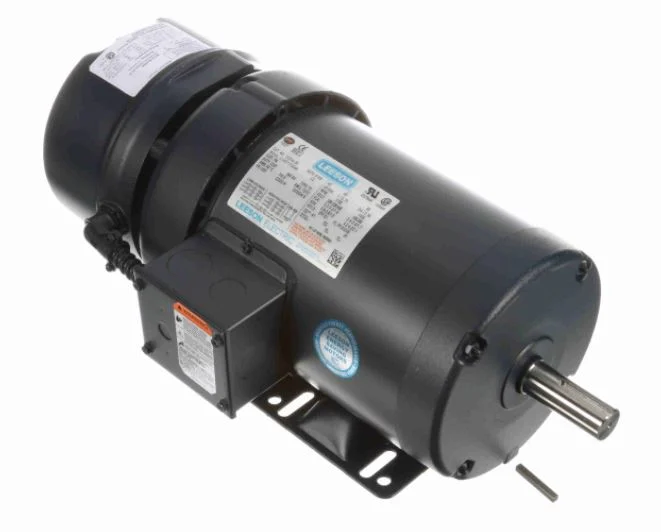

LEESON Fail-safe positive, stop and hold brake-motors. Brakes are spring set. Load stopped automatically when power is turned off. LEESON brake-motors feature a power off manual release for convenience, and for use in case of a power failure. The manual release resets automatically. The standard brake is manufactured by Stearns. The brake coil leads are brought into the conduit box of the motor for easy connection and may be connected to operate when power to the motor is shut off, or to be actuated independent of power to the motor.
Specifications
|
Brand: |
Leeson |
|
Application: |
Brakemotor |
|
Output HP: |
3/4 |
|
Output KW: |
0.55 |
|
Output RPM: |
1725 |
|
Frame Size NEMA: |
56 |
|
Mount NEMA: |
With Base |
|
Enclosure NEMA: |
TEFC |
|
Enclosure IEC: |
IP43 |
|
Voltage: |
208-230/460 |
