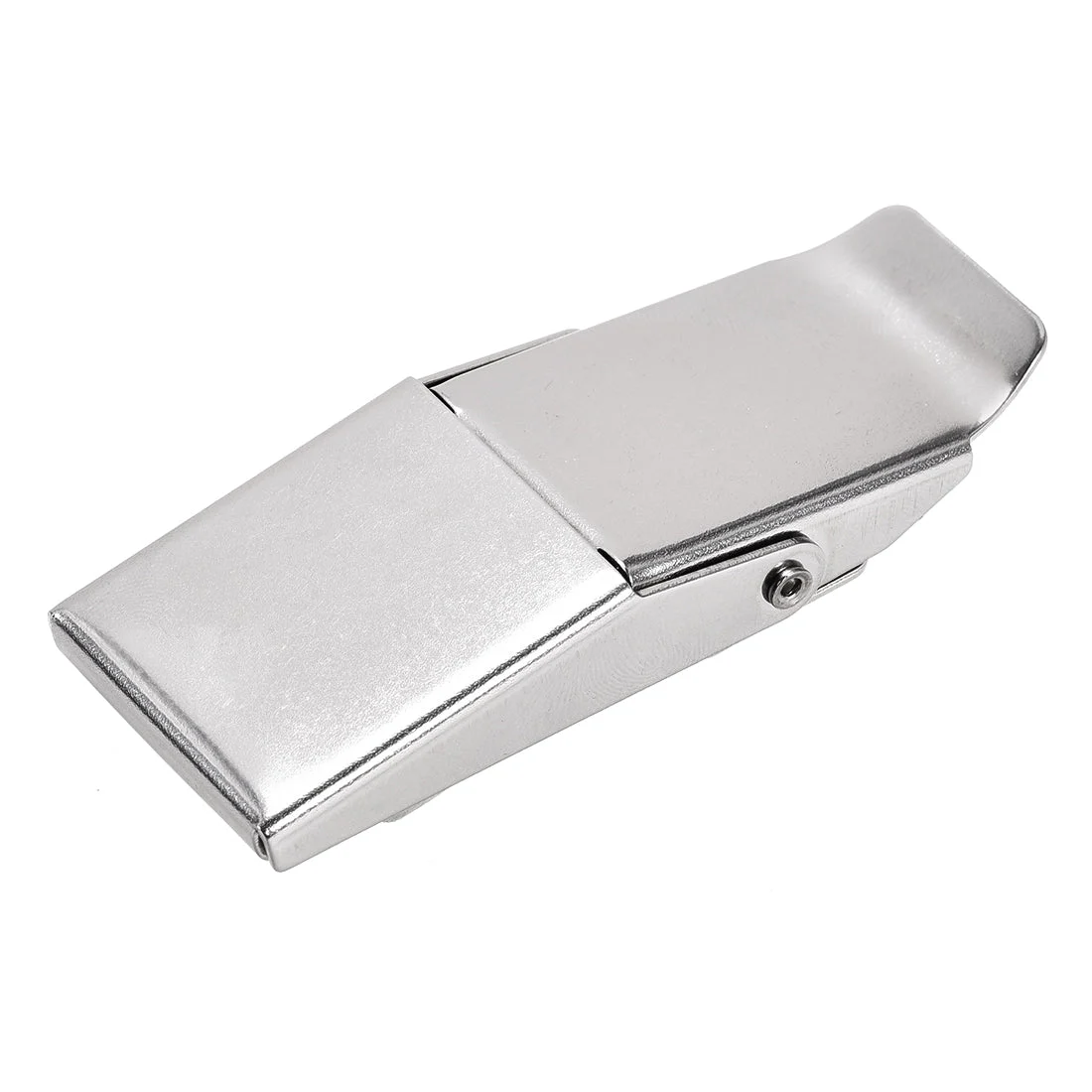

3.01-inch SUS304 Stainless Steel Concealed Draw Toggle Latch Clamp for Case, Toolbox, Cleaner

About this item

• [Load] – Locking load: 900N, Ultimate load: 2900N.
• [Widely Used] – Suitable for small case cover,toolbox,cleaner.
• [Main Body Size] – 76.5mm x 31mm / 3.01″ x 1.22″ (L*W).
• [Material] – Premium SUS304 stainless steel ultimate rust and weather resistance.
• [Feature] – Spring leaf inside to reduce vibration, spring can self-acting return.

• Premium stainless steel 304 material, rustproof durable to use.
• Adjustable latch ,locking force is adjustable.
• Concealed toggle latch, better visual effects, compact structure.
• Spring leaf inside to reduce vibration, spring can self-acting return.
• Widely used for small case cover, toolbox, Cleaner.
• Easy to install by screws, and please note that screws are not included here.

Specification:

Material: SUS304 Stainless Steel

Finish: Polish

Main Body Size: 76.5mm x 31mm / 3.01″ x 1.22″ (L*W)

Hook Size: 26mm x 21.5mm x 1.4mm / 1.02″ x 0.85″ x 0.055″ (L*W*T)

Body Mounting Hole Diameter: 4mm / 0.16″

Hook Mouting Hole Diameter: 4.5mm / 0.177″

Locking Load:900N

Ultimate Load:2900N

Package Content:

1 x Concealed Toggle Latch
