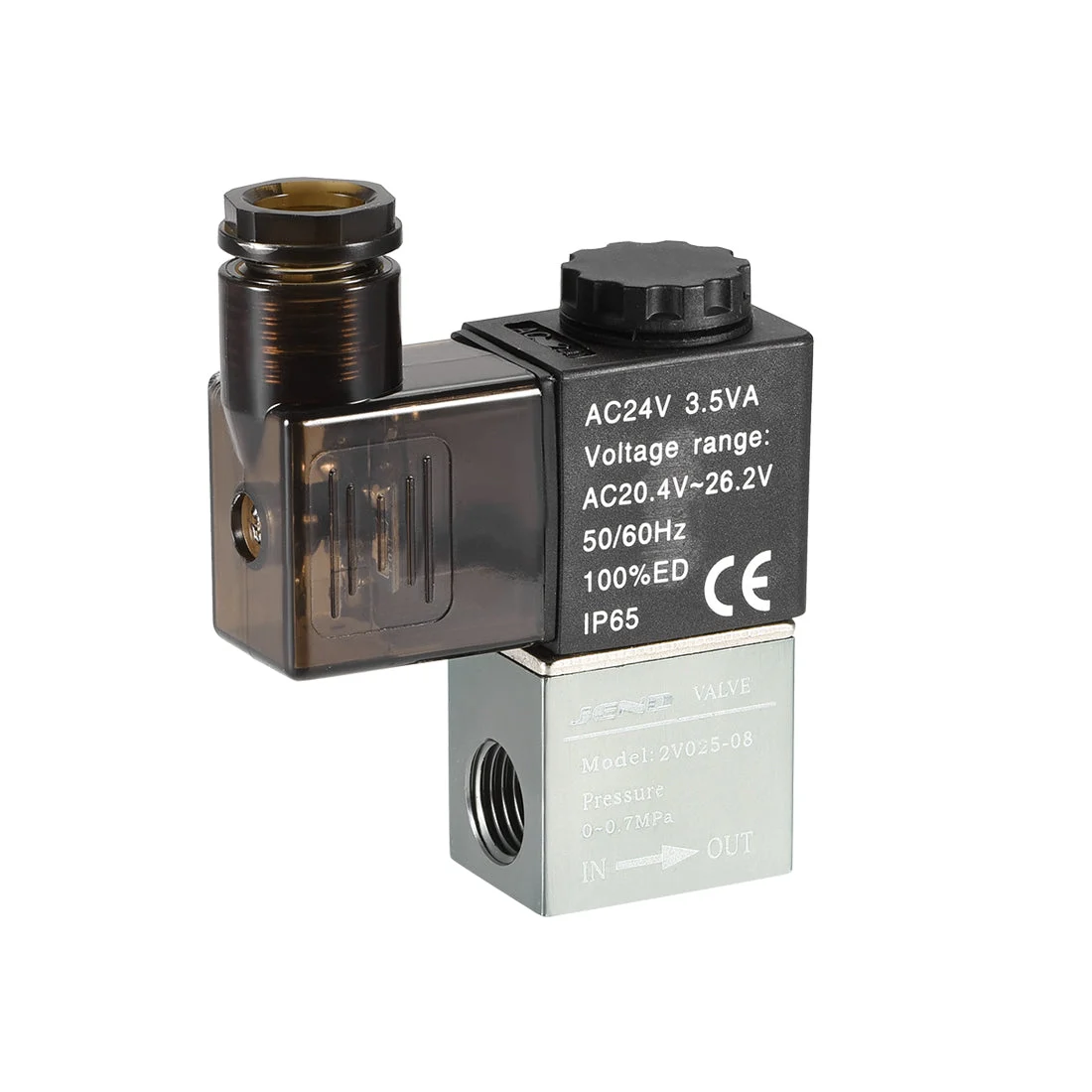

2V025-08 Air NC Single Electrical Solenoid Valve, AC 24V 2 Way 2Position 1/4″ PT

About this item

• UNIVERSAL DESIGN – Pneumatic Solenoid Valve Type: 2 Port 2 Position Normally closed type ; Voltage : AC 24V ; Air Flow In Hole Size : 1/4″ PT
• APPLICATION – Single Control Valve Used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted.
• EASY TO REPLACE – The coil is easy to disassemble. Removable core nut, coil damage can be replaced at any time
• ADVANTAGE – Guide head made of excellent conductor material with high strength and high frequency response for smoother operation
• MATERIAL – The valve body is made of aluminum alloy and has strong pressure resistance. The inner hole is machined by a special process, with low frictional resistance, low starting air pressure and long service life.

Specification:

Product Name : Solenoid Valve

Model: 2V025-08

Net Weight: 154g

Color : Black,Silver Tone

CV values: 0.25

Control Type: Power Ups

Voltage : AC 24V

Valve Type: 2 Port 2 Position

Air Flow In and Out Hole Size : 1/4″ PT

Main parts material: Aluminum alloy

Working pressure: 0~0.7mpa

Operating temperature: -5~60 Degree Celsius

Total Size : 77mm x 63mm x 22mm / 3.03″ x 2.48″ x 0.87″ (L x W x H)

Package Included:

1 x Solenoid Valve

 Description:

1.The strength of the aluminum alloy valve body is large. The valve body is made of new aluminum alloy material, which has strong pressure resistance,good corrosion resistance and fast heat dissipation.

2. sealing ring. seals for durability and longer life

3.High precision valve stem. Imported lubricants to ensure lubrication and reduce friction during exercise

4.High frequency sub-head. Made of conductor material with 6 times in 1 second high intensity and high frequency response for smoother operation

5.The coil is easy to disassemble. Removable core nut, coil damage can be replaced at any time

6. electronic components. The copper coil can work hard for a long time, and the wiring operation is simple.

7.Used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted.

Attention :

1.The manual button tests the status of the product when it is powered up

2.The valve is N / C (normally closed), meaning it will shut down when not powered.The valve is N / C (normally closed), meaning it will shut down when not powered.
