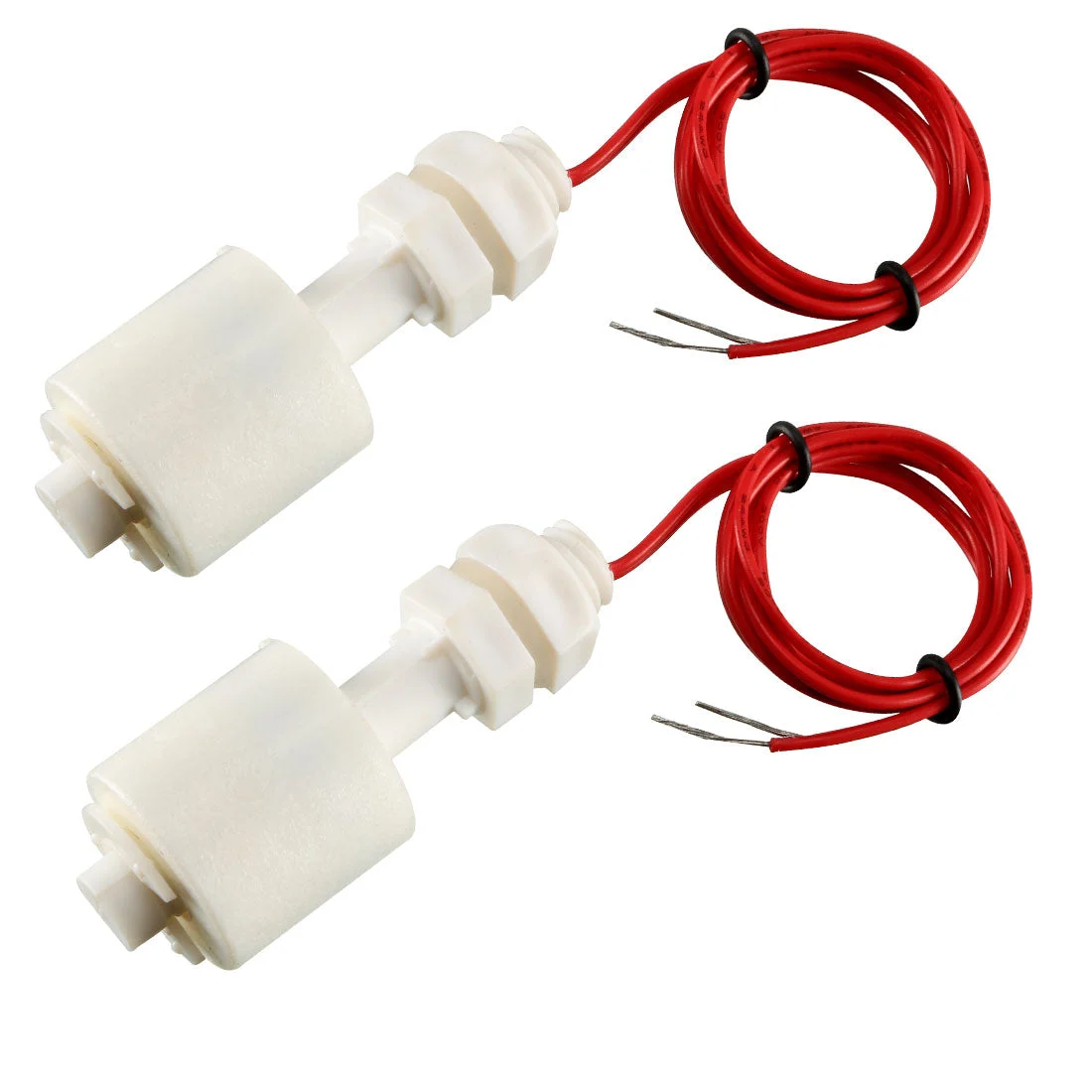

2Pcs ZP4510 White Plastic Liquid Water Level Sensor Float Floating Switch

About this item

• Product Name : Water Level Sensor;Model No. : ZP4510;Max Contact Rating : Max Contact Rating;10W : 10W
• Max Switching Voltage : 220V DC/AC;Max Switching Current : 1.5A;Max Breakdown Voltage : 300V DC/AC;Max Carry Current : 3A
• Max Contact Resistance : 100mOhm;Temperature Rating : -10 / +85 C;Float Ball Material : P.P;Float Body Material : P.P
• Thread Dia(Approx) : 9.5mm / 0.374″;Switch Body Size : 23.3 x 57.7mm / 0.9″ x 2.27″(Max D*H);Cable Length : 36cm / 14.2″; Body Total Length:57.7mm / 2.27″
• Color : White;Net Weight : 28g;Package Content : 2 x Water Level Sensor

• A float switch is a device used to sense the level of liquid within a tank. The switch may actuate a pump, an indicator, an alarm, or other device.
• It can be easily converted from normally open to normally close by inverting the float.
• Note: because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay or contactor are not included here.
