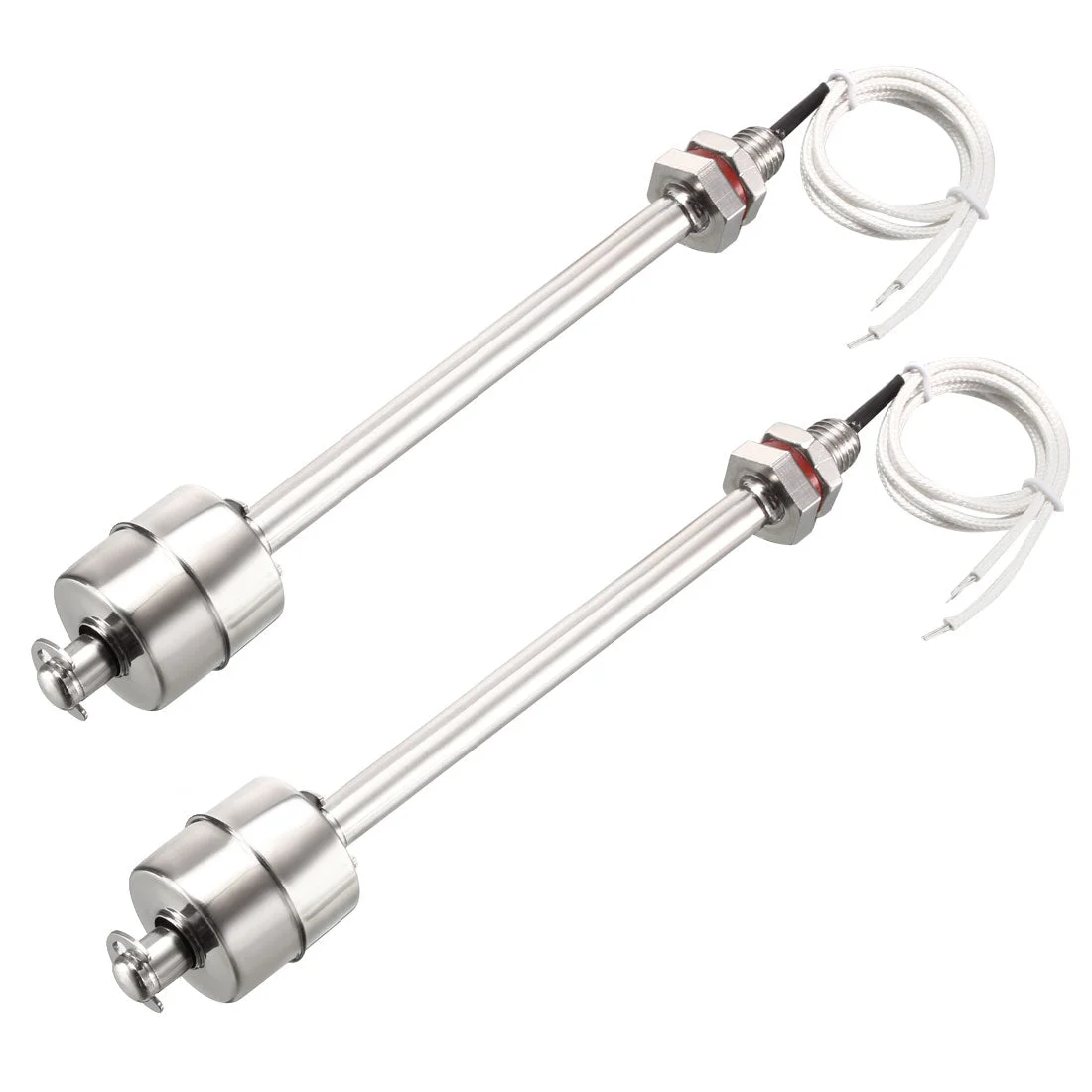

2pcs Stainless Steel Float Switch M10 165mm Fish Tank Vertical Liquid Water Level Sensor

About this item

• Max Switching Voltage : DC110V; Max Switching Power : 10W; Float Ball Size : 26x27mm; Wire Length : 300mm; Screw : M10
• The float switch can be installed at the top or bottom of the tank, depending on whether you want to detect water rising or falling.
• Floating ball switch is a kind of liquid level control device with simple structure and convenient use. It has the advantages of small volume and long working life compared with general mechanical switch. When selecting the right material, any kind of liquid, pressure and temperature can be used.
• Widely Applications: For tank / pump water level control;For fish tank and aquarium system; Used for water level control of household appliances;Used for water level control of swimming pool, fountain, pond, waterfall, etc.
• Please Note : Float switch can not directly control solenoid valve or high power relay, AC contactor, etc. Small relays are required to transition.

Specifications:
Product Name: Float Switch
Max Contact: Rating 10W
Max Switching Voltage: 110V DC
Max Switching Current: 0.5A
Max Breakdown Voltage: 220V DC
Max Carry Current: 1.0A
Max Contact Resistance: 100mohm
Temperature Rating: -10 ~ +60 C / 85 C
Float Ball Material: Stainless Steel
Float Body Material: Stainless Steel
Float Ball Size(Approx): 26 x 27.6mm(L*D)
Thread Dia(Approx): M10
Body Total Length: 165mm
Cable Length: 26cm
Color: Stainless Steel Color
Net Weight: 114g

Package Content :
2pcs x Float Switch
Description:
A float switch is a device used to sense the level of liquid within a tank. The switch may actuate a pump, an indicator, an alarm, or other device.
It can be easily converted from normally open to normally close by inverting the float.
The versatility of this vertically monted sensor means that it can be installed either at the top or base of your tank,depending on whether you wish to detect the water is rise or fall.
Note:
because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay and contactor are not included here.
